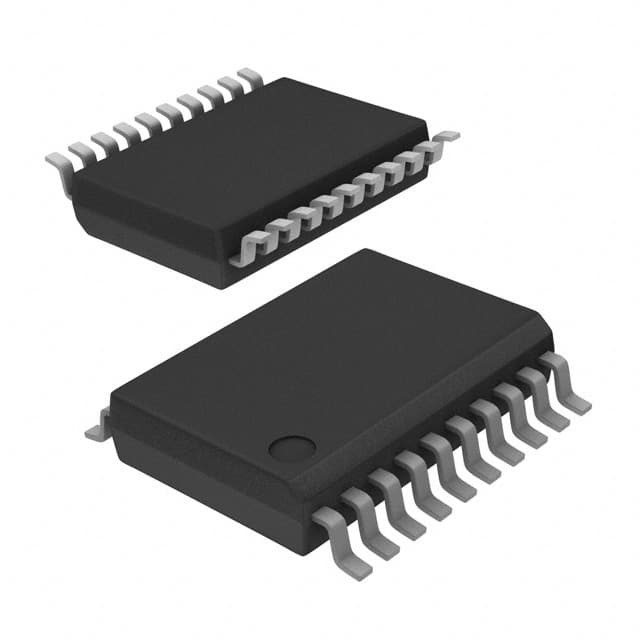

MCP23009T-E/SS

SKU: 151086

Manufacturer: Microchip Technology

I2C Interface 3400kHz 5.5V Automotive 20-Pin SSOP T/R

1250 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Number of I/Os	8
Number of Addresses	8
Manual Reset	Yes
Interface Type	I2C
Interface Speed (kHz)	3400
I2C Bus Interface Mode	Fast Mode Plus
Interrupt Output	Yes
Output Type	Open Drain
Operating Supply Voltage-Min (V)	1.8
Operating Supply Voltage-Max (V)	5.5
Maximum Sink Current per Bit (mA)	25
Maximum Quiescent Current (uA)	6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.75
Package Length	7.2
Package Width	5.3
PCB changed	20
