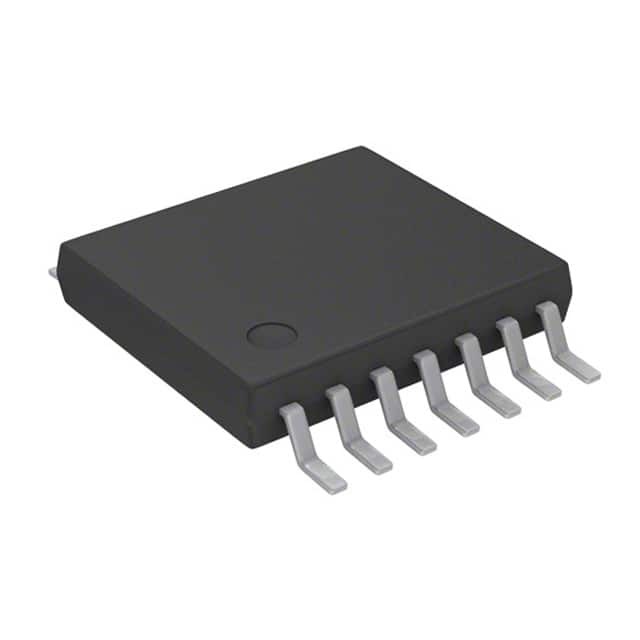

MCP2022A-500E/ST

SKU: 133753

Manufacturer: Microchip Technology

LIN Transceiver with Integrated Vreg 5V 20kBd Automotive 14-Pin TSSOP Tube

2890 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Built-in Options	Voltage Regulator
LIN Specifications	LIN 1.3
LIN Bus Wake-up Capable	Yes
External Wake-up Pin	Yes
Maximum Data Rate (kBd)	20
Regulator Voltage (V)	5
Minimum LIN Bus Voltage (V)	-18
Maximum LIN Bus Voltage (V)	30
Minimum Single Supply Voltage (V)	6
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	18
Maximum ESD Protection Voltage (kV)	±1.5@CDM/±8@HBM/±0.2@MM
Maximum Supply Current (mA)	1
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Standard Package Method	SOP
Original Package	TSSOP
Pin Count	14
Terminal Form	Surface Mount
Package Height	1
Package Length	5
Package Width	4.4
PCB changed	14
