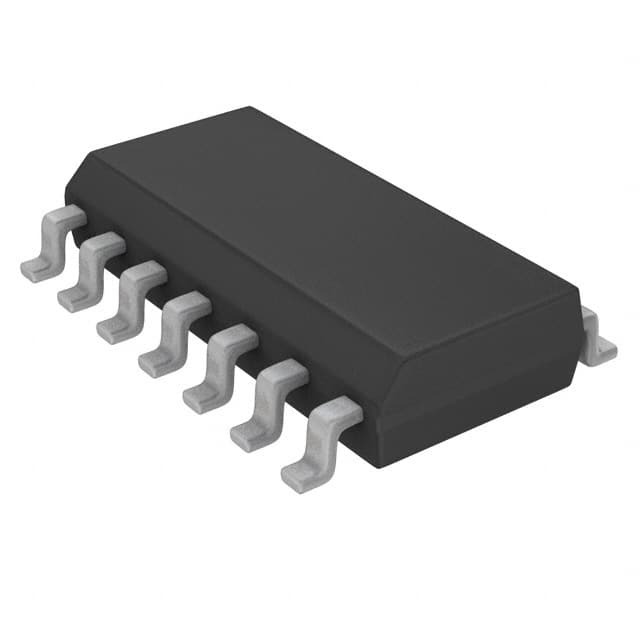

MCP2022-330E/SL

SKU: 23628

Manufacturer: Microchip Technology

LIN Transceiver with Integrated Vreg 3.3V 20kBd Automotive 14-Pin SOIC N Tube

1490 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	NRND
Automotive	Unknown
PPAP	Unknown
Built-in Options	Voltage Regulator
LIN Specifications	LIN 1.3
LIN Bus Wake-up Capable	Yes
External Wake-up Pin	Yes
Maximum Data Rate (kBd)	20
Regulator Voltage (V)	3.3
Minimum LIN Bus Voltage (V)	-18
Maximum LIN Bus Voltage (V)	30
Minimum Single Supply Voltage (V)	6
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	18
Maximum ESD Protection Voltage (kV)	±1.5@CDM/±8@HBM/±0.8@MM
Maximum Supply Current (mA)	1
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Standard Package Method	SOP
Pin Count	14
Original Package	SOIC N
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	8.65
Package Width	3.9
PCB changed	14
