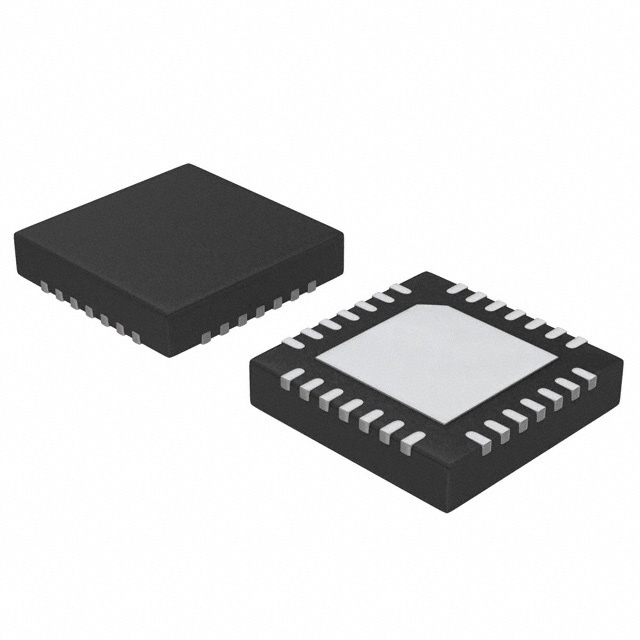

MCP19119-E/MQ

SKU: 98252

Manufacturer: Microchip Technology

DC/DC Cntrlr Single-OUT Step Down 1600kHz 28-Pin QFN EP Tube

1690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.5 to 3.6
Maximum Output Current (A)	0.025
Maximum Switching Frequency (kHz)	1600
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	4.5 to 40
Typical Quiescent Current (mA)	5
Minimum Switching Frequency (kHz)	100
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	QFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
PCB changed	28
