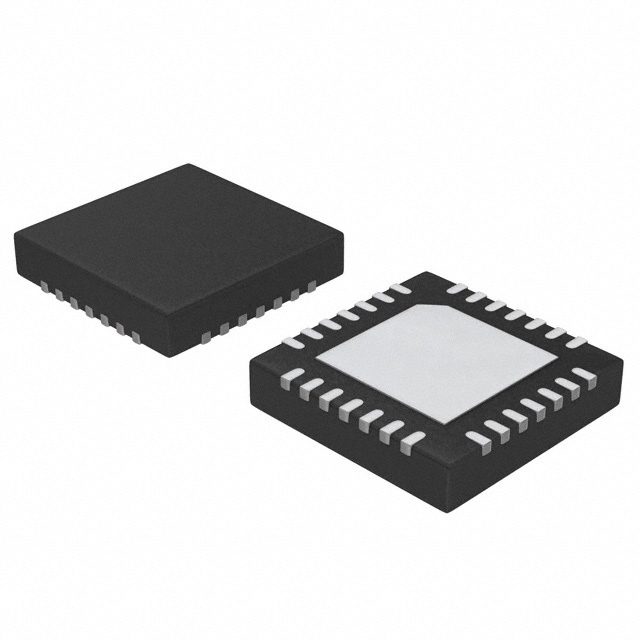

MCP19117-E/MQ

SKU: 77008

Manufacturer: Microchip Technology

DC/DC Cntrlr Single-OUT Step Up 2000kHz Automotive 28-Pin QFN EP Tube

4020 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Unknown
Number of Outputs	1
Topology	Step Up
Minimum Output Current (A)	0.035
Maximum Switching Frequency (kHz)	2000
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	42
Operating Supply Voltage (V)	4.5 to 42
Typical Quiescent Current (mA)	6
Minimum Switching Frequency (kHz)	31.25
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	QFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	5
Package Width	5
PCB changed	28
