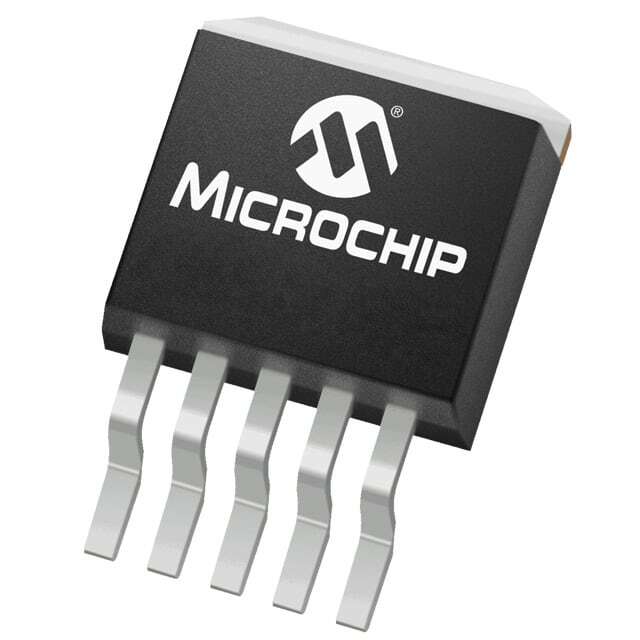

MCP1825T-1202E/ET

SKU: 34644

Manufacturer: Microchip Technology

LDO Regulator Pos 1.2V 0.5A Automotive 6-Pin(5+Tab) DDPAK T/R

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±0.5(Typ)
Process Technology	CMOS
Output Type	Fixed
Output Voltage (V)	1.2
Maximum Output Current (A)	0.5(Min)
Minimum Input Voltage (V)	2.1
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.35@500mA
Line Regulation	0.05%/V(Typ)
Load Regulation	0.5%(Typ)
Maximum Quiescent Current (mA)	0.22
Junction to Ambient	31.2°C/W(Typ)
Junction to Case	3°C/W(Typ)
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	DDPAK
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	5
Tab	Tab
