MCP1790-5002E/DB

SKU: 155027

Manufacturer: Microchip Technology

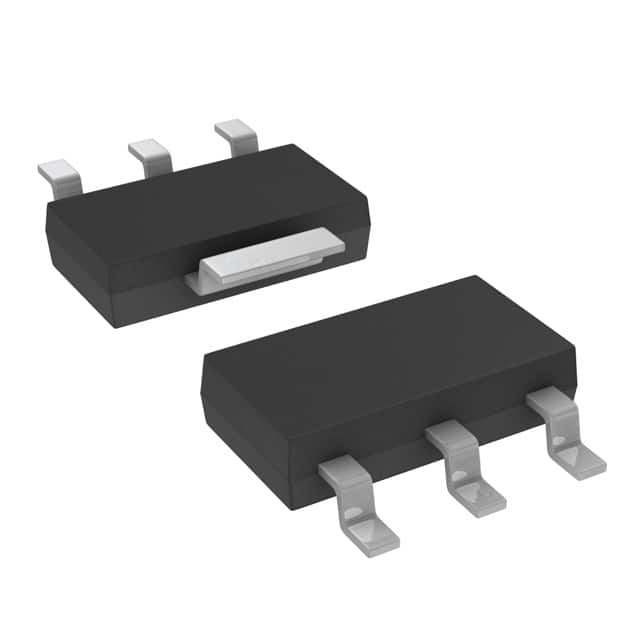

LDO Regulator Pos 5V 0.07A Automotive 4-Pin(3+Tab) SOT-223 Tube

59790 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2.5
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.07(Min)
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	30
Maximum Dropout Voltage @ Current (V)	1.3@70mA
Line Regulation	±0.0002%/V(Typ)
Load Regulation	±0.2%(Typ)
Maximum Quiescent Current (mA)	0.13
Typical Ground Current @ Full Load (mA)	0.11
Junction to Ambient	62°C/W(Typ)
Junction to Case	15°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT-223
Terminal Form	Surface Mount
Package Height	1.6
Package Length	6.5
Package Width	3.5
PCB changed	3
Tab	Tab
