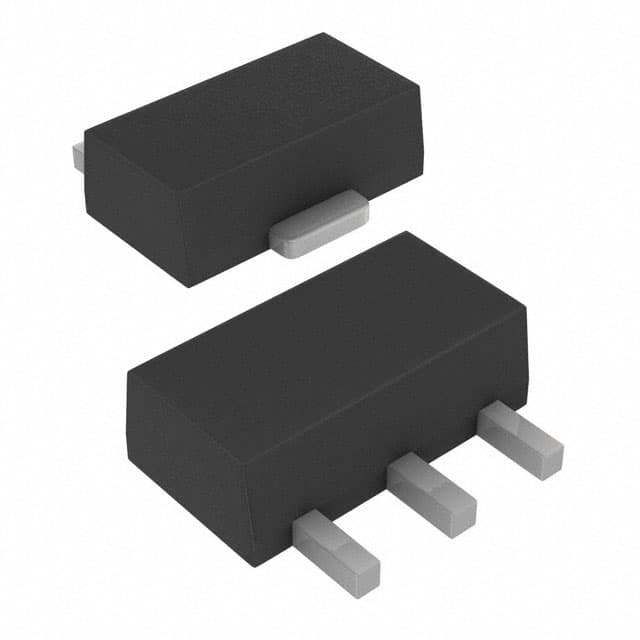

MCP1700T-2502E/MB

SKU: 119537

Manufacturer: Microchip Technology

LDO Regulator Pos 2.5V 0.25A Automotive 4-Pin(3+Tab) SOT-89 T/R

14800 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Process Technology	CMOS
Output Type	Fixed
Output Voltage (V)	2.5
Maximum Output Current (A)	0.25(Min)
Minimum Input Voltage (V)	2.3
Maximum Input Voltage (V)	6
Maximum Dropout Voltage @ Current (V)	0.35@250mA
Line Regulation	0.75%/V(Typ)
Load Regulation	1%(Typ)
Maximum Quiescent Current (mA)	0.004
Junction to Ambient	104°C/W(Typ)
Junction to Case	74°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	SOT-89
Pin Count	4
Terminal Form	Surface Mount
Package Height	1.5
Package Length	4.5
Package Width	2.5
PCB changed	3
