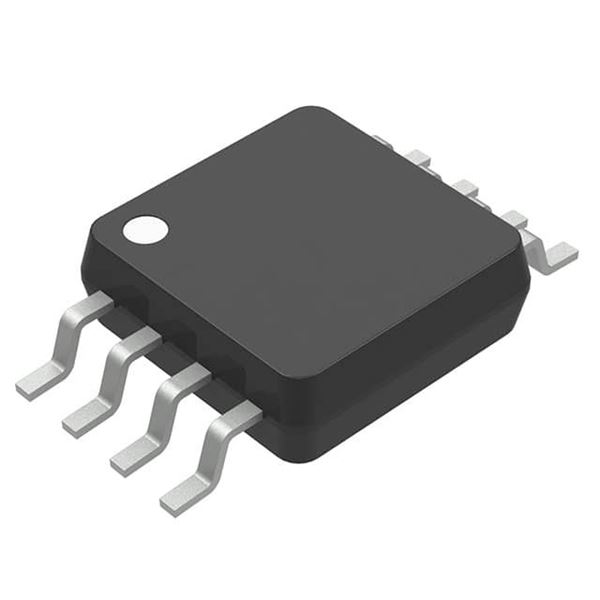

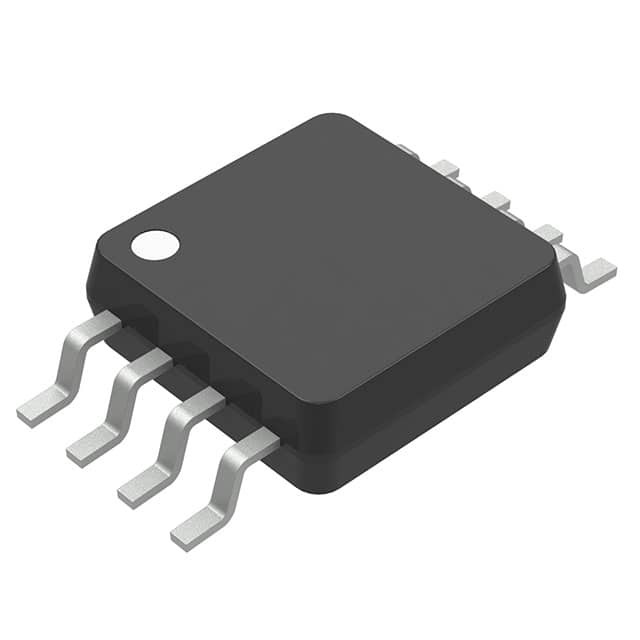

MCP1632-BAE/MS

SKU: 155022

Manufacturer: Microchip Technology

Current Mode PWM Controller 690kHz Automotive 8-Pin MSOP Tube

1710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Boost
Switching Frequency (kHz)	690
Maximum Duty Cycle (%)	95
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	MSOP
Pin Count	8
Terminal Form	Surface Mount
Package Height	0.85
Package Length	3
Package Width	3
PCB changed	8
