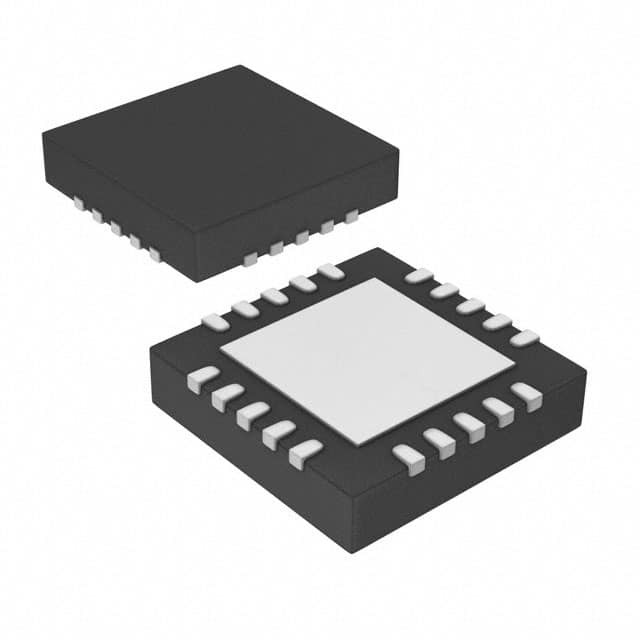

MCP1631T-E/ML

SKU: 91158

Manufacturer: Microchip Technology

Current Mode PWM Controller 250mA 2000kHz Automotive 20-Pin QFN EP T/R

15270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	Yes
PPAP	Yes
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Number of PWM Outputs	1
Switching Frequency (kHz)	2000
Maximum Duty Cycle (%)	0(Min)
Rise Time (ns)	2.5
Output Current (mA)	250
Fall Time (ns)	2.7
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Adjustable Output	No
On/Off Pin	Yes
Synchronous Pin	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Original Package	QFN EP
Pin Count	20
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.88
Package Length	4
Package Width	4
PCB changed	20
