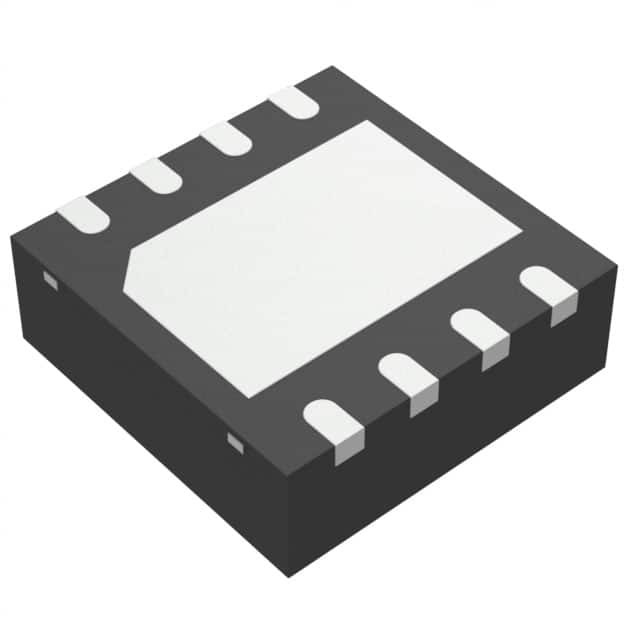

MCP14E6-E/MF

SKU: 20440

Manufacturer: Microchip Technology

Driver 2A 2-OUT Low Side Inv Automotive 8-Pin DFN-S EP Tube

2750 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Driver Type	Low Side
Driver Configuration	Inverting
Number of Drivers	2
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	30
Maximum Fall Time (ns)	35
Maximum Propagation Delay Time (ns)	65
Input Logic Compatibility	3V to 18V
Operating Supply Voltage-Min (V)	4.5
Operating Supply Voltage-Max (V)	18
Maximum Supply Current (mA)	1.8
Typical Input Low Threshold Voltage (V)	1.3
Typical Input High Threshold Voltage (V)	1.5
Peak Output Current (A)	2(Typ)
Output Resistance (Ohm)	5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Pin Count	8
Standard Package Method	DFN
Original Package	DFN-S EP
Terminal Form	Surface Mount
Package Height	0.84
Package Length	5
Package Width	6
PCB changed	8
