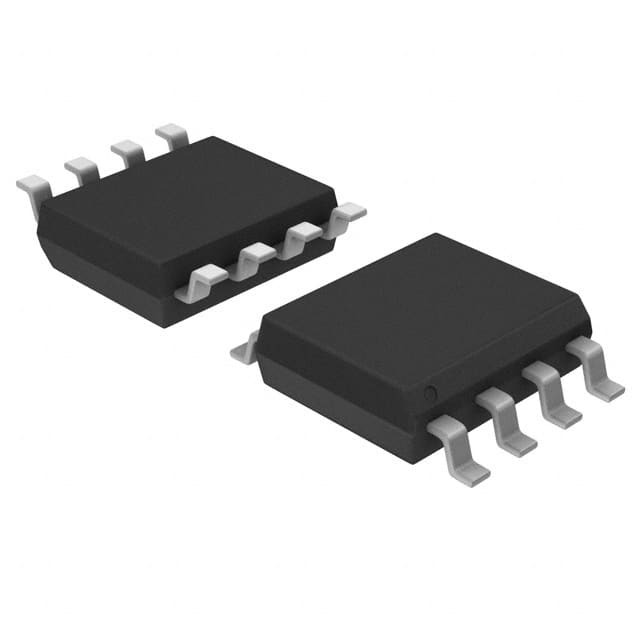

MCP14700T-E/SN

SKU: 119532

Manufacturer: Microchip Technology

Driver 3.5A 2-OUT High and Low Side Non-Inv Automotive 8-Pin SOIC N T/R

4740 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Unknown
PPAP	Unknown
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	10(Typ)
Maximum Fall Time (ns)	10(Typ)
Maximum Propagation Delay Time (ns)	36
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Supply Current (mA)	0.045(Typ)
Typical Input Low Threshold Voltage (V)	1.2
Typical Input High Threshold Voltage (V)	1.6
Peak Output Current (A)	3.5(Typ)
Output Resistance (Ohm)	1
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Special Features	Synchronous
Packing Method	Tape and Reel
Original Package	SOIC N
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.25(Min)
Package Length	4.9
Package Width	3.9
PCB changed	8
