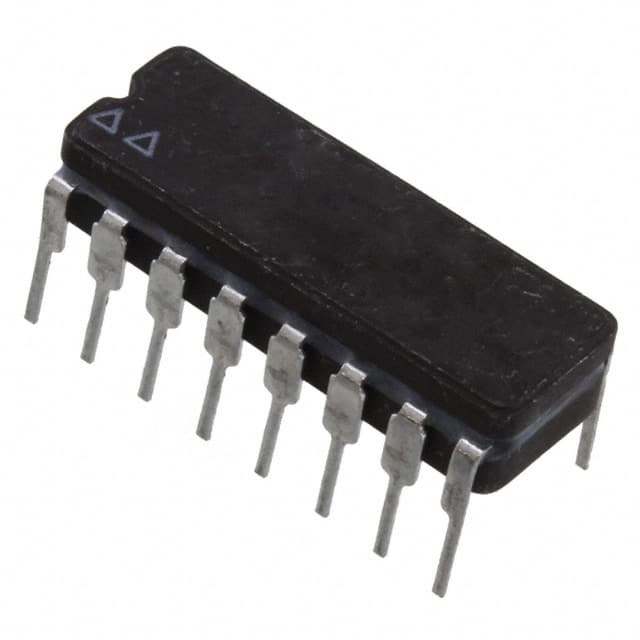

M38510/14103BEA

SKU: 69773

Manufacturer: Microchip Technology

Trans Darlington NPN 50V 0.5A 16-Pin CDIP

2430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	NPN
Configuration	Array 7
Number of Elements per pcs	7
Collector-Emitter Voltage-Max (V)	50
Maximum Continuous DC Collector Current (A)	0.5
Maximum Collector-Emitter Saturation Voltage (V)	1.1@250uA@100mA
Minimum DC Current Gain	1000@350mA@2V
Operating Temperature-Min	-65
Operating Temperature-Max	150
Supplier Temperature Grade	Military
Original Package	CDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
PCB changed	16
