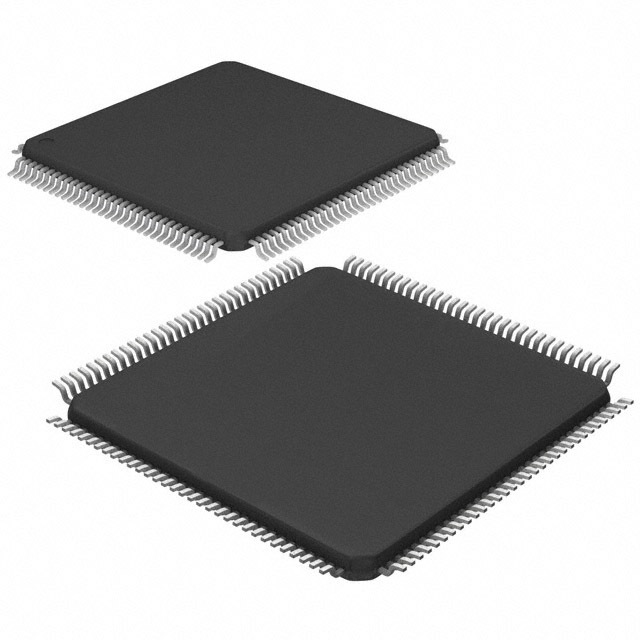

LAN9311I-NZW

SKU: 96978

Manufacturer: Microchip Technology

Ethernet Switch 2-Port 100Mbps 128-Pin XVTQFP Tray

1520 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991
Part Status	Active
HTS	8471.80.10.00
Automotive	No
PPAP	No
Number of Primary Switch Ports	2
Maximum Data Rate (Mbps)	100
Typical Data Rate (Mbps)	10/100
Internal Memory Buffer Size	32KB
PHY/Transceiver Interface	MII
Operating Supply Voltage-Min	3V
Typical Operating Supply Voltage	3.3V
Operating Supply Voltage-Max	3.6V
Maximum Supply Current (mA)	295
Maximum Power Dissipation (mW)	1070
Power Supply Type	Analog
Fiber Support	No
Integrated LED Drivers	No
VLAN Support	Yes
JTAG Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Original Package	XVTQFP
Pin Count	128
Terminal Form	Surface Mount
Package Height	1
Package Length	14
Package Width	14
