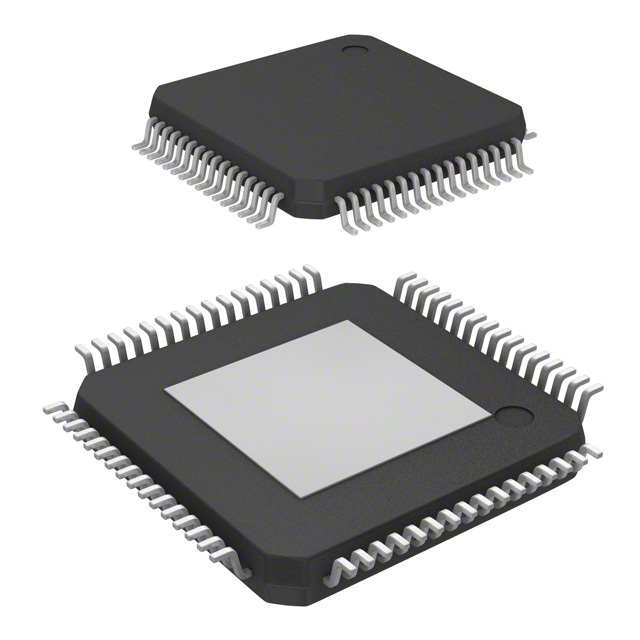

KSZ9021RL

SKU: 153727

Manufacturer: Microchip Technology

PHY 1-CH 10Mbps/100Mbps/1Gbps 64-Pin LQFP EP Tray

930 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A991.b
Part Status	NRND
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Channels per Chip	1
Maximum Data Rate	1Gbps
PHY Line Side Interface	No
JTAG Support	No
Integrated CDR	No
Standard Supported	10BASE-T
Typical Data Rate (Mbps)	10/100/1000
Ethernet Speed	10Mbps/100Mbps/1000Mbps
Ethernet Interface Type	RGMII
Operating Supply Voltage-Min (V)	1.14
Typical Operating Supply Voltage (V)	1.2
Operating Supply Voltage-Max (V)	1.26
Maximum Supply Current (mA)	563(Typ)
Power Supply Type	Analog
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Original Package	LQFP EP
Pin Count	64
Terminal Form	Surface Mount
Package Height	1
Package Length	10
Package Width	10
