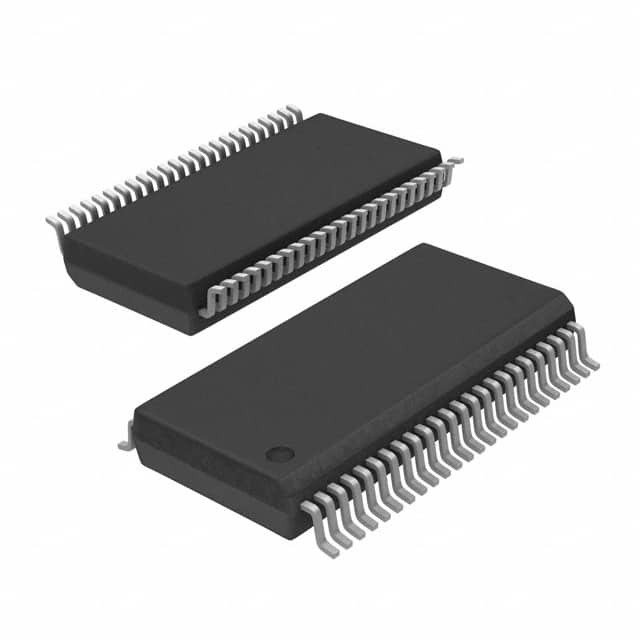

KS8721B-TR

SKU: 125276

Manufacturer: Microchip Technology

PHY 1-CH 10Mbps/100Mbps 2.5V 48-Pin SSOP T/R

2710 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	5A991
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Channels per Chip	1
Maximum Data Rate	100Mbps
PHY Line Side Interface	No
JTAG Support	No
Integrated CDR	No
Standard Supported	10BASE-T
Typical Data Rate (Mbps)	10/100
Operating Supply Voltage-Min (V)	2.375
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	2.625
Maximum Supply Current (mA)	144(Typ)
Power Supply Type	Analog
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Original Package	SSOP
Pin Count	48
Terminal Form	Surface Mount
Package Height	2.29
Package Length	15.88
Package Width	7.49
