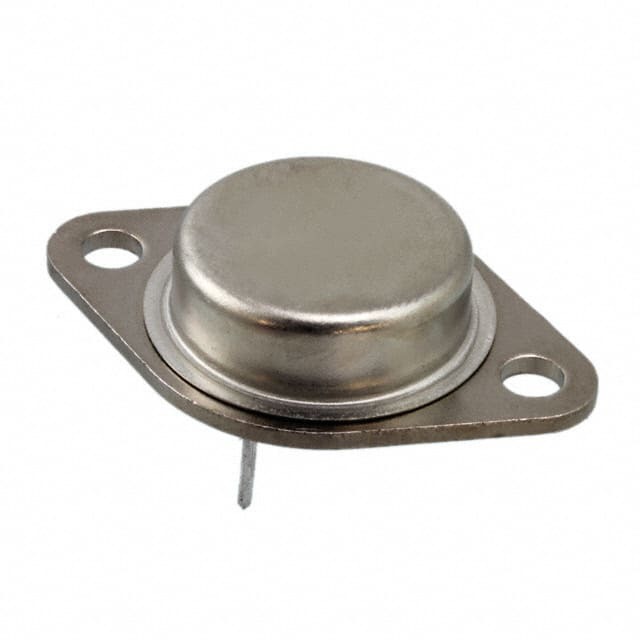

JANTX2N6650

SKU: 87010

Manufacturer: Microchip Technology

Trans Darlington PNP 80V 10A 5000mW 3-Pin(2+Tab) TO-3 Tray

1590 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	PNP
Configuration	Single
Number of Elements per pcs	1
Collector-Emitter Voltage-Max (V)	80
Collector Base Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Maximum Continuous DC Collector Current (A)	10
Maximum Collector Cut-Off Current (uA)	1000
Maximum Collector-Emitter Saturation Voltage (V)	2@10mA@5A
Minimum DC Current Gain	1000@5A@3V
Maximum Power Dissipation (mW)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Packing Method	Tray
Original Package	TO-3
Pin Count	3
Standard Package Method	TO-204-AA
Terminal Form	Through Hole
Package Height	7.92
Package Length	39.29
Package Width	26.42
PCB changed	2
Tab	Tab
