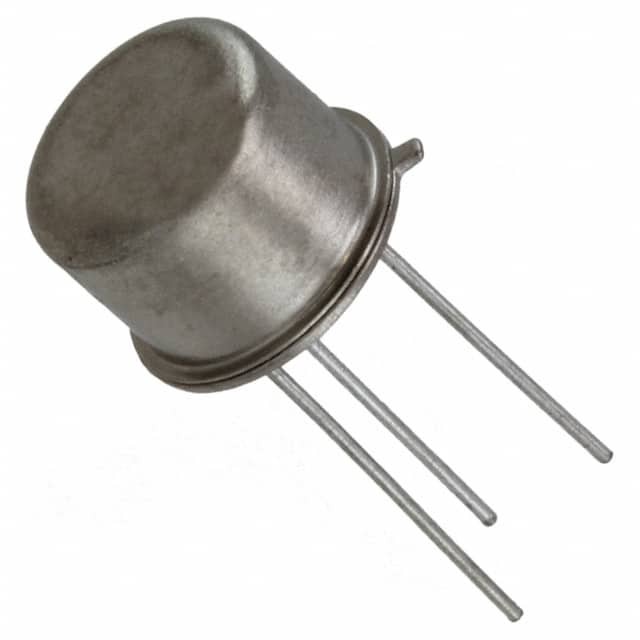

JANTX2N4150S

SKU: 65904

Manufacturer: Microchip Technology

Trans GP BJT NPN 70V 10A 1000mW 3-Pin TO-39 Bag

1960 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	100
Collector-Emitter Voltage-Max (V)	70
Maximum Emitter Base Voltage (V)	10
Maximum Base Emitter Saturation Voltage (V)	1.5@0.5A@5A
Maximum Collector-Emitter Saturation Voltage (V)	0.6@0.5A@5A
Maximum DC Collector Current (A)	10
Minimum DC Current Gain	50@1A@5V
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Bag
Supplier Temperature Grade	Military
Original Package	TO-39
Pin Count	3
Standard Package Method	TO-205-AF
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	6.6(Max)
PCB changed	3
