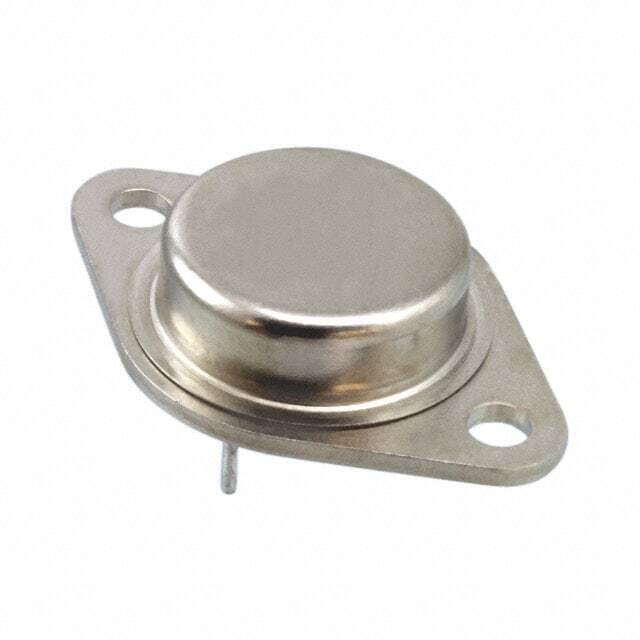

JANTX2N3442

SKU: 108157

Manufacturer: Microchip Technology

Trans GP BJT NPN 140V 10A 6000mW 3-Pin(2+Tab) TO-3 Tray

3080 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	160
Collector-Emitter Voltage-Max (V)	140
Maximum Emitter Base Voltage (V)	7
Maximum Collector-Emitter Saturation Voltage (V)	1@300mA@3A
Maximum DC Collector Current (A)	10
Minimum DC Current Gain	20@3A@4V
Maximum Power Dissipation (mW)	6000
Operating Temperature-Min	-55
Operating Temperature-Max	200
Packing Method	Tray
Supplier Temperature Grade	Military
Original Package	TO-3
Pin Count	3
Standard Package Method	TO-204-AA
Terminal Form	Through Hole
Package Height	7.92
Package Length	39.29
Package Width	26.42
PCB changed	2
Tab	Tab
