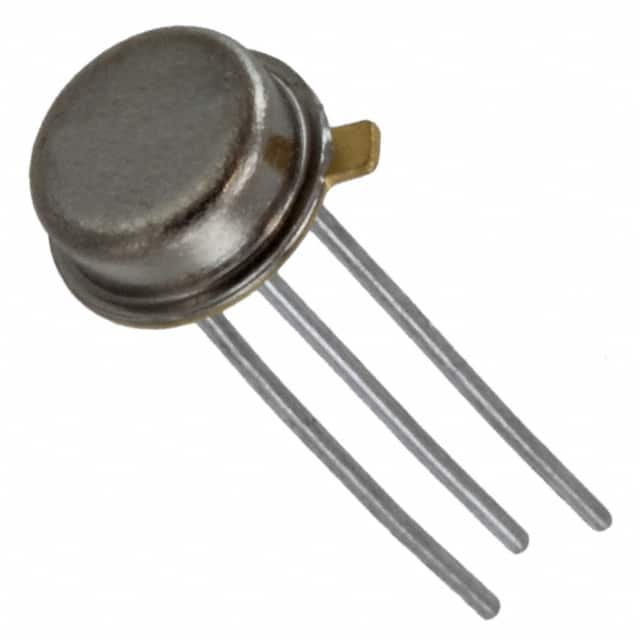

JANTX2N2605

SKU: 16338

Manufacturer: Microchip Technology

Trans GP BJT PNP 60V 0.03A 400mW 3-Pin TO-46 Bag

2370 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.80
Automotive	No
PPAP	No
Type	PNP
Product Category	Bipolar Small Signal
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	70
Collector-Emitter Voltage-Max (V)	60
Maximum Emitter Base Voltage (V)	6
Maximum Base Emitter Saturation Voltage (V)	0.9@500uA@10mA
Maximum Collector-Emitter Saturation Voltage (V)	0.3@500uA@10mA
Maximum DC Collector Current (A)	0.03
Minimum DC Current Gain	100@10uA@5V
Maximum Power Dissipation (mW)	400
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Bag
Supplier Temperature Grade	Military
Original Package	TO-46
Pin Count	3
Standard Package Method	TO-206-AB
Diameter	5.84(Max)
Terminal Form	Through Hole
Package Height	2.7(Max)
