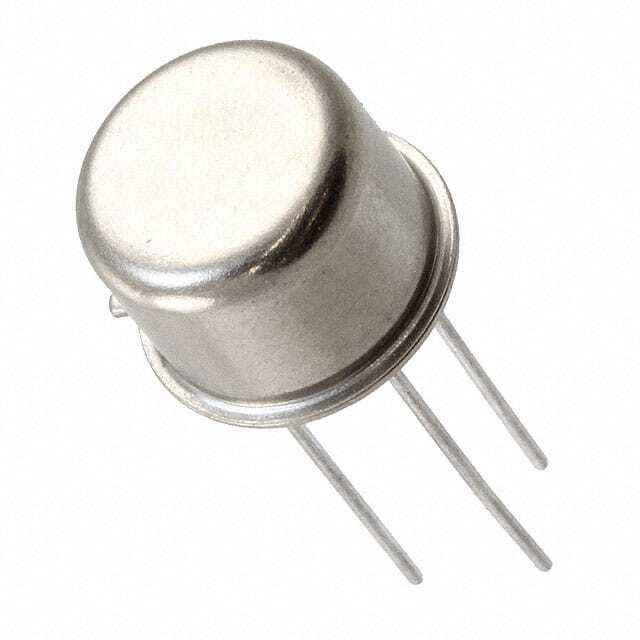

JANTX2N2326S Microchip Technology

JANTX2N2326S

SKU: 16337

Manufacturer: Microchip Technology

Thyristor SCR 200V 15A 3-Pin TO-5

Download sample

Request Free Samples

3210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Maximum Gate Trigger Voltage (V)	0.8
Maximum Gate Trigger Current (mA)	0.2
Surge Current Rating (A)	15
Maximum Holding Current (mA)	2
Repetitive Peak Reverse Voltage (V)	200
Maximum Gate Peak Inverse Voltage (V)	6
Peak On-State Voltage (V)	2.2@4A
Repetitive Peak Forward Blocking Voltage (V)	200
Rated Average On-State Current (A)	0.22@Ta=80C
Repetitive Peak Off-State Current (mA)	0.01
Phase Control	No
Operating Temperature-Min	-65
Operating Temperature-Max	125
Supplier Temperature Grade	Military
Original Package	TO-5
Pin Count	3
Standard Package Method	TO-205-AA
Diameter	9.4(Max)
Terminal Form	Through Hole
Package Height	6.6(Max)
PCB changed	3
