JANTX1N755AUR-1

SKU: 108154

Manufacturer: Microchip Technology

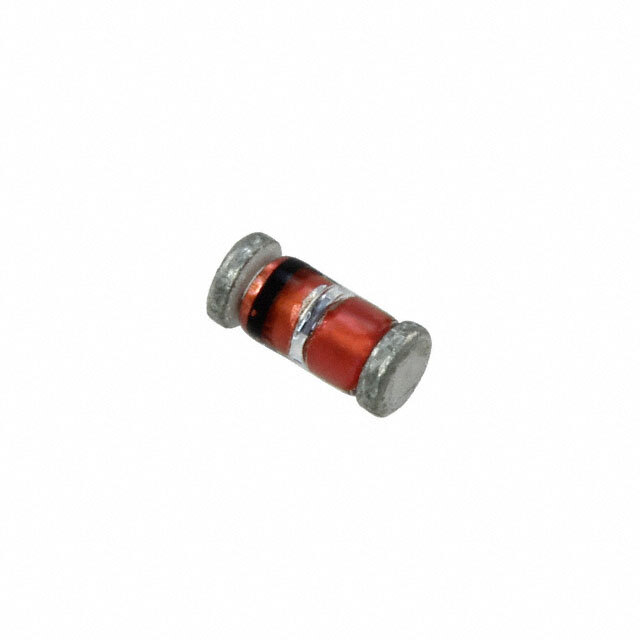

Zener Diode Single 7.5V 5% 6Ohm 500mW 2-Pin DO-213AA Bag

3120 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	7.5
Zener Voltage Tolerance	5%
Maximum Power Dissipation (mW)	500
Test Current (mA)	20
Maximum Reverse Leakage Current (uA)	0.1
Maximum Regulator Current (mA)	50
Maximum Zener Impedance (Ohm)	6
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Packing Method	Bag
Original Package	DO-213AA
Pin Count	2
Standard Package Method	SOD-80
Diameter	1.7(Max)
Terminal Form	Surface Mount
Package Length	3.7(Max)
PCB changed	2
