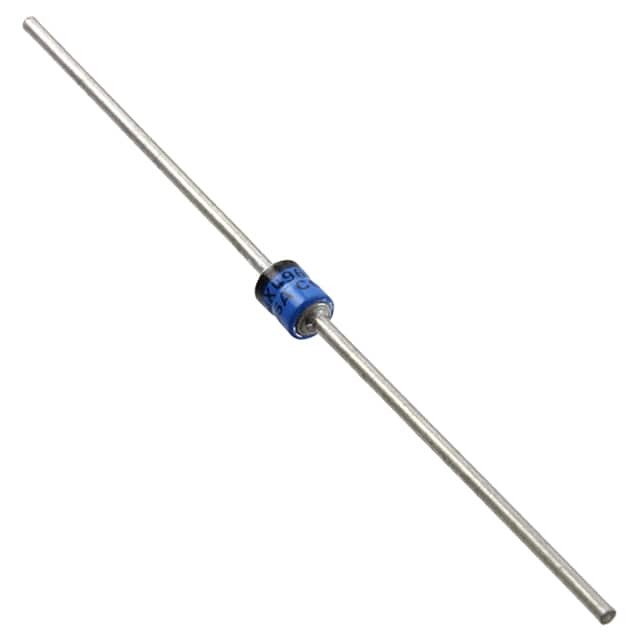

JANTX1N4956

SKU: 118173

Manufacturer: Microchip Technology

Zener Diode Single 8.2V 5% 1.5Ohm 5000mW 2-Pin Case E Bag

3580 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.10.00.50
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Regulator
Configuration	Single
Nominal Zener Voltage (V)	8.2
Zener Voltage Tolerance	5%
Maximum Voltage Regulation (mV)	700
Maximum Power Dissipation (mW)	5000
Test Current (mA)	150
Maximum Reverse Leakage Current (uA)	50
Maximum Regulator Current (mA)	580
Maximum Zener Impedance (Ohm)	1.5
Operating Temperature-Min	-65
Operating Temperature-Max	175
Supplier Temperature Grade	Military
Typical Voltage Temperature Coefficient	0.06%/°C(Max)
Packing Method	Bag
Original Package	Case E
Pin Count	2
Standard Package Method	Case E
Diameter	3.42(Max)
Terminal Form	Through Hole
Package Length	4.7(Max)
PCB changed	2
