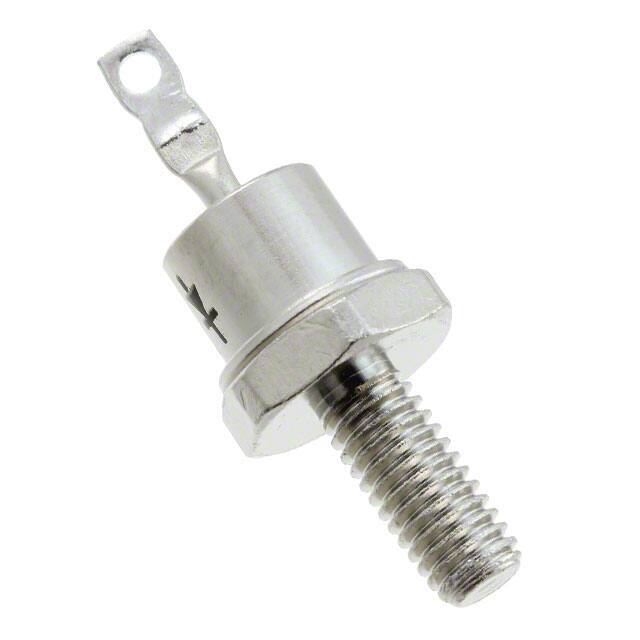

JANTX1N1202A

SKU: 37575

Manufacturer: Microchip Technology

Rectifier Diode Switching 200V 12A 2-Pin DO-4 Tray

2760 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Switching Diode
Configuration	Single
Peak Reverse Repetitive Voltage (V)	200
Maximum Continuous Forward Current (A)	12
Peak Non-Repetitive Surge Current (A)	250
Peak Forward Voltage (V)	1.2@30A
Peak Reverse Current (uA)	10
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Tray
Supplier Temperature Grade	Military
Original Package	DO-4
Pin Count	2
Standard Package Method	DO-203-AA
Terminal Form	Stud
Package Height	21.8(Max)
Package Length	12.81(Max)
Package Width	11.1(Max)
PCB changed	2
