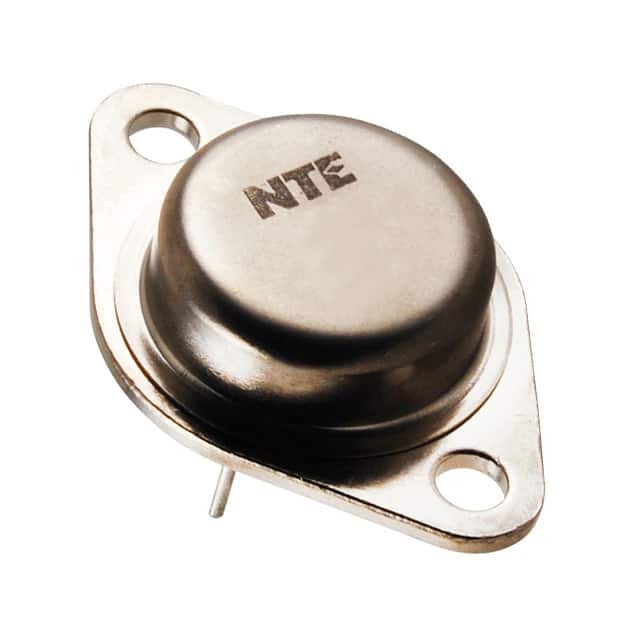

JAN2N5303

SKU: 94009

Manufacturer: Microchip Technology

Trans GP BJT NPN 80V 20A 5000mW 3-Pin(2+Tab) TO-3 Tray

3140 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	NPN
Product Category	Bipolar Power
Body Material	Si
Configuration	Single
Number of Elements per pcs	1
Collector Base Voltage-Max (V)	80
Collector-Emitter Voltage-Max (V)	80
Maximum Emitter Base Voltage (V)	5
Maximum Base Emitter Saturation Voltage (V)	1.7@1A@10A
Maximum Collector-Emitter Saturation Voltage (V)	1@1A@10A
Maximum DC Collector Current (A)	20
Minimum DC Current Gain	40@1A@2V
Maximum Power Dissipation (mW)	5000
Operating Temperature-Min	-65
Operating Temperature-Max	200
Packing Method	Tray
Supplier Temperature Grade	Military
Original Package	TO-3
Pin Count	3
Standard Package Method	TO-204-AA
Terminal Form	Through Hole
Package Height	7.92
Package Length	39.29
Package Width	26.42
PCB changed	2
Tab	Tab
