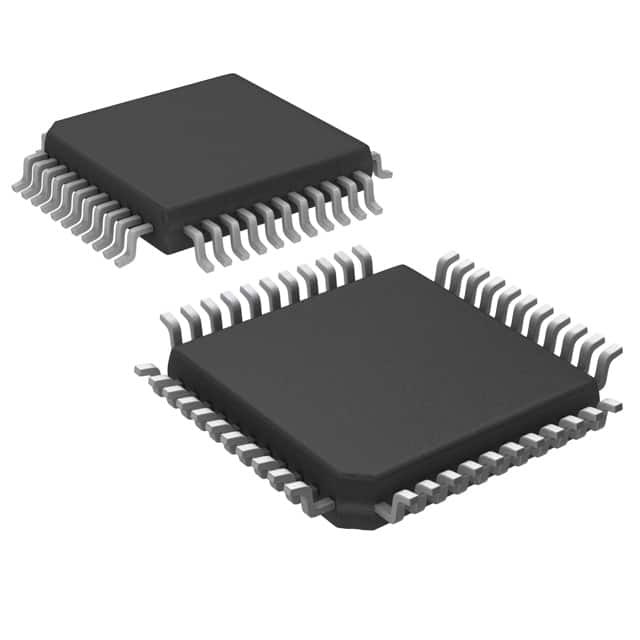

HV5222PG-G

SKU: 115264

Manufacturer: Microchip Technology

Shift Register/Latch/Driver Single 32-Bit Serial to Parallel 44-Pin PQFP Tray

210 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Logic Function	Shift Register/Latch/Driver
Operation Mode	Serial to Parallel
Number of Elements per pcs	1
Number of Element Inputs	1
Number of Count Input Enables	0
Number of Selection Inputs per Element	0
Number of Element Outputs	32
Number of Stages	32
Direction Type	Uni-Directional
Triggering Type	Positive-Edge
Process Technology	CMOS
Output Type	Open Drain
Operating Supply Voltage-Min (V)	10.8
Operating Supply Voltage-Max (V)	13.2
Parallel Enable Input	No
Terminal Count Output	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	PQFP
Pin Count	44
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	2
Package Length	10
Package Width	10
PCB changed	44
