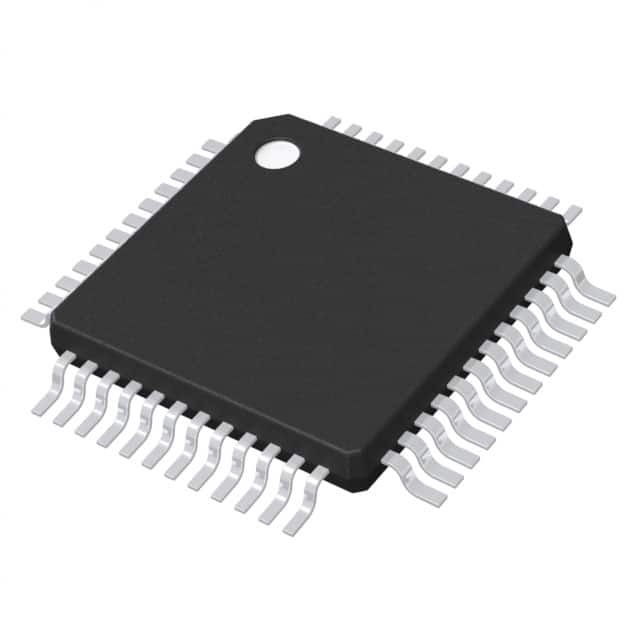

HV238FG-G

SKU: 44651

Manufacturer: Microchip Technology

Analog Switch Hexadecimal SPST 48-Pin LQFP Tray

1170 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8541.29.00.95
Automotive	No
PPAP	No
Type	Analog Switch
Configuration	Hexadecimal SPST
Switch Architecture	SPST
Number of Channels per Chip	16
Number of Inputs per Chip	16
Number of Outputs per Chip	16
Chip Enable Signals	Yes
Polarity	Non-Inverting
Maximum Turn-On Time (ns)	5000
Maximum Turn-Off Time (ns)	5000
Input Signal Type	Single
Output Signal Type	Single
Minimum Single Supply Voltage (V)	4.75
Typical Single Supply Voltage (V)	12
Maximum Single Supply Voltage (V)	12.6
Maximum On Resistance (Ohm)	32
Maximum On Resistance Range (Ohm)	25 to 35
Power Supply Type	Single
Maximum Power Dissipation (mW)	1000
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tray
Original Package	LQFP
Pin Count	48
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.4
Package Length	7
Package Width	7
PCB changed	48
