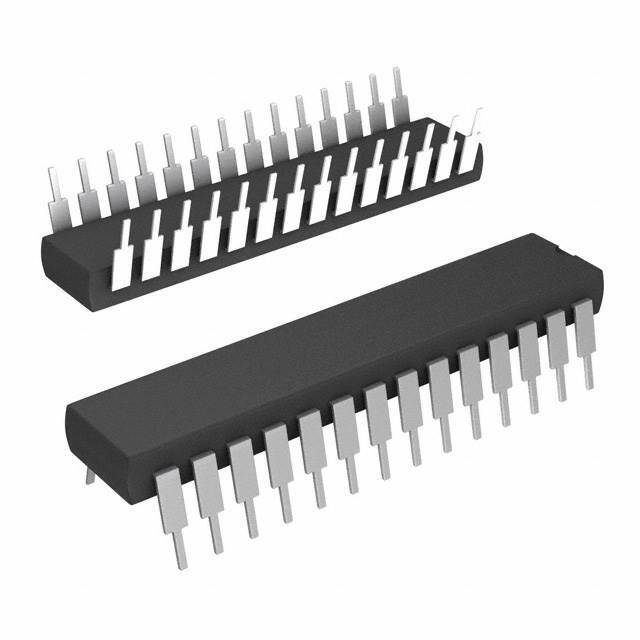

DSPIC33FJ128GP202-E/SP

SKU: 143551

Manufacturer: Microchip Technology

MCU 16-bit dsPIC RISC 128KB Flash 3.3V Automotive 28-Pin SPDIP Tube

3090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
Automotive	Yes
PPAP	Unknown
Family Name	dsPIC33F
Instruction Set Architecture	RISC
Device Core	dsPIC
Core Architecture	dsPIC
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	8KB
Maximum Expanded Memory Size	12MB
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	21
No. of Timers	5
PWM	4
Number of ADCs	Dual
ADC Channels	10/10
ADC Resolution (bit)	10/12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	16
USART	0
UART	2
USB	0
SPI	2
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	SPDIP
Pin Count	28
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.43
Package Length	34.67
Package Width	7.24
