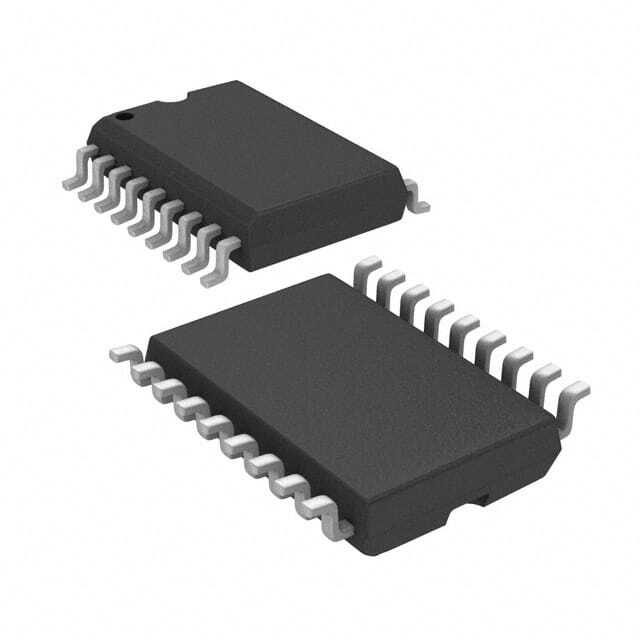

DSPIC33FJ06GS101-E/SO

SKU: 96400

Manufacturer: Microchip Technology

MCU 16-bit dsPIC RISC 6KB Flash 2.5V/3.3V Automotive 18-Pin SOIC W Tube

810 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Yes
Family Name	dsPIC33F
Instruction Set Architecture	RISC
Device Core	dsPIC
Core Architecture	dsPIC
Maximum CPU Frequency (MHz)	40
Maximum Clock Rate (MHz)	40
Data Bus Width (bit)	16
Program Memory Type	FLASH
Program Memory Size	6KB
RAM Size	256B
Programmability	Yes
Interface Type	I2C/SPI/UART
Number of I/Os	13
No. of Timers	3
PWM	4
Number of ADCs	Single
ADC Channels	6
ADC Resolution (bit)	10
USART	0
UART	1
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Operating Supply Voltage-Min (V)	2.25
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	2.75
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Extended
Packing Method	Tube
Original Package	SOIC W
Pin Count	18
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	2.05(Min)
Package Length	11.55
Package Width	7.5
PCB changed	18
