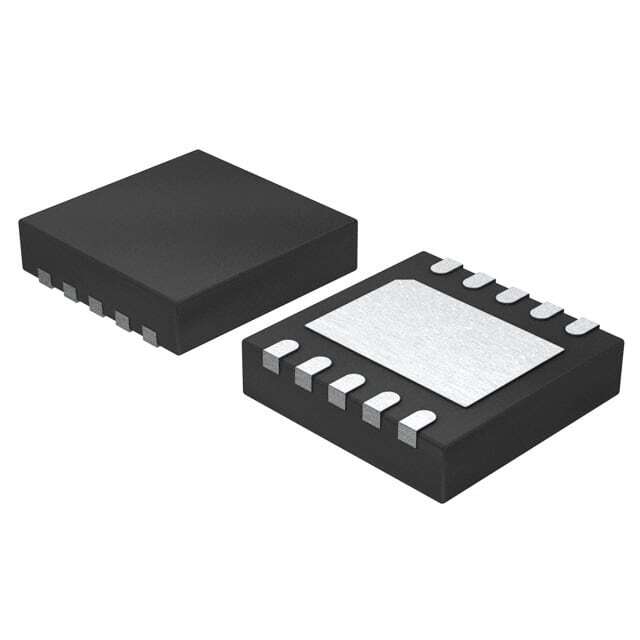

CAP1296-1-AIA-TR

SKU: 79623

Manufacturer: Microchip Technology

Capacitive Touch Screen 2-Wire 10-Pin DFN EP T/R

2950 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	Capacitive
Number of Channels per Chip	6
Resolution (bit)	8
Maximum Load Capacitance (pF)	400
Maximum Rise Time (ns)	300
Maximum Fall Time (ns)	300
Spread Spectrum	No
Interface Type	I2C
Touch Panel Interface	2-Wire
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.5
Maximum Low Level Output Voltage (V)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	DFN
Pin Count	10
Original Package	DFN EP
Terminal Form	Surface Mount
Package Height	0.83
Package Length	3
Package Width	3
PCB changed	10
