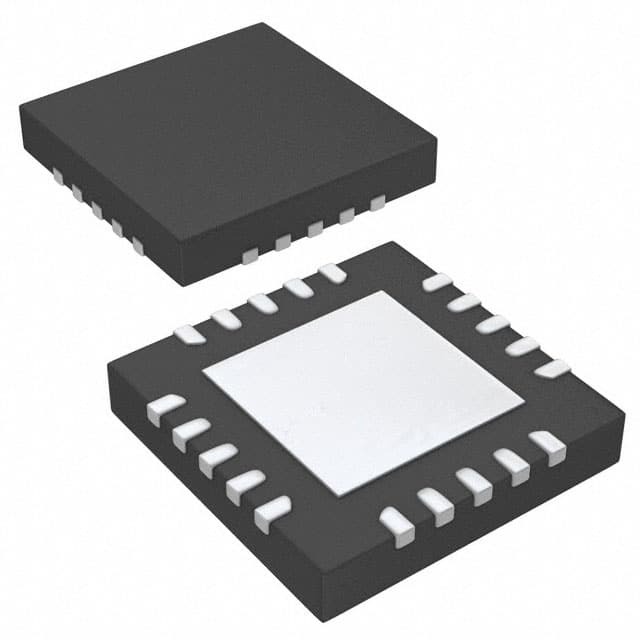

CAP1166-1-BP-TR

SKU: 110123

Manufacturer: Microchip Technology

Capacitive Touch Screen 2-Wire 20-Pin QFN EP T/R

10 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Type	Capacitive
Number of Channels per Chip	6
Resolution (bit)	8
Maximum Load Capacitance (pF)	400
Maximum Rise Time (ns)	300
Maximum Fall Time (ns)	300
Spread Spectrum	No
Interface Type	I2C/SPI
Touch Panel Interface	2-Wire
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Low Level Output Voltage (V)	0.4
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Commercial
Packing Method	Tape and Reel
Standard Package Method	QFN
Original Package	QFN EP
Pin Count	20
Terminal Form	Surface Mount
Package Height	0.83
Package Length	4
Package Width	4
PCB changed	20
