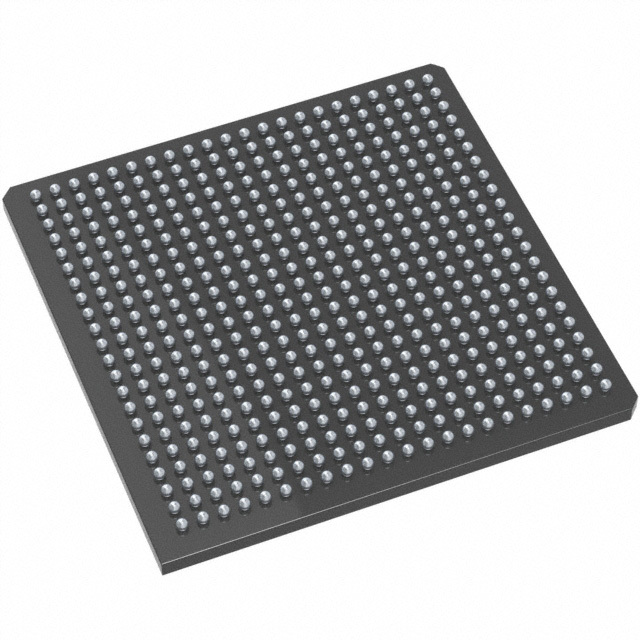

AX500-FGG484

SKU: 72532

Manufacturer: Microchip Technology

FPGA Axcelerator Family 286K Gates 5376 Cells 649MHz 0.15um Technology 1.5V 484-Pin FBGA Tray

2670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A001.a.7.a
Part Status	Active
Automotive	No
PPAP	No
Family Name	Axcelerator
Process Technology	0.15um
User I/Os	317
Number of I/O Banks	8
Number of Inter Dielectric Layers	7
Number of Registers	5376
Operating Supply Voltage (V)	1.5
Logic Elements	5376
Device System Gates	500000
Program Memory Type	OTP
Embedded Memory (Kbit)	72
Total Number of Block RAM	16
Device Logic Gates	286000
Device Logic Units	5376
Number of Global Clocks	8
Device Number of DLLs/PLLs	8
Programmability	Yes
Reprogrammability Support	No
Copy Protection	No
Opr. Frequency (MHz)	649
In-System Programmability	No
Speed Grade	STD
Maximum Propagation Delay Time (ns)	0.99
Maximum I/O Performance	700Mbps
Operating Supply Voltage-Min (V)	1.425
Operating Supply Voltage-Max (V)	1.575
I/O Voltage (V)	3.3
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Packing Method	Tray
Tradename	Axcelerator
Original Package	FBGA
Pin Count	484
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.73
Package Length	23
Package Width	23
PCB changed	484
