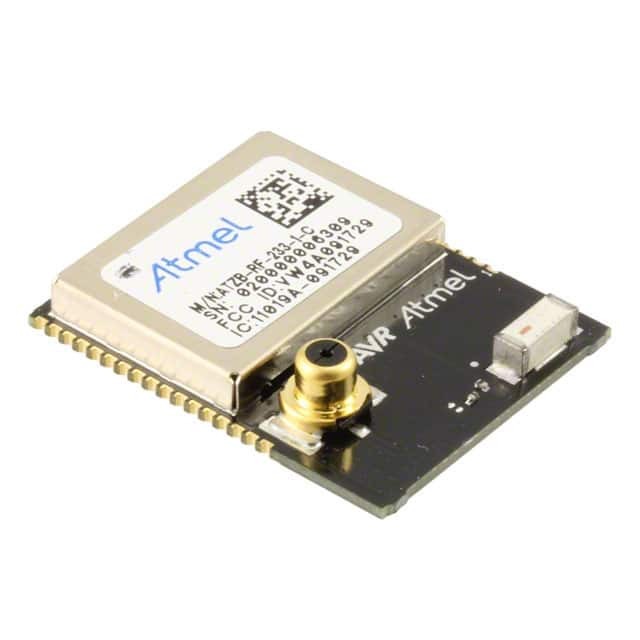

ATZB-RF-233-1-C

SKU: 131216

Manufacturer: Microchip Technology

802.15.4 SOC 2483.5MHz 2000Kbps 42-Pin SMD Module Tray

2550 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Module/IC Classification	Module
Solutions	AMR/ISM
Number of Channels	16
Internal Antenna Type	Chip
Maximum Data Rate (Kbps)	2000
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
ISM Band	2.4GHz
Typical Sensitivity	-105dBm
Protocol Stack	802.15.4
Interface	SPI/JTAG
Maximum Output Power	20.5dBm(Typ)
Operating Supply Voltage-Min (V)	2
Operating Supply Voltage-Max (V)	3.6
Maximum Current Consumption (RX) (mA)	7.5
Maximum Current Consumption (TX) (mA)	157
Outdoor Range	1960m
Processing Unit Type	Microcontroller
Antenna Terminal Form	On Board
Application	HVAC monitoring and control
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Standard Package Method	SMD Module
Original Package	SMD Module
Pin Count	42
Terminal Form	Surface Mount
Package Height	3.2
Package Length	25
Package Width	20
