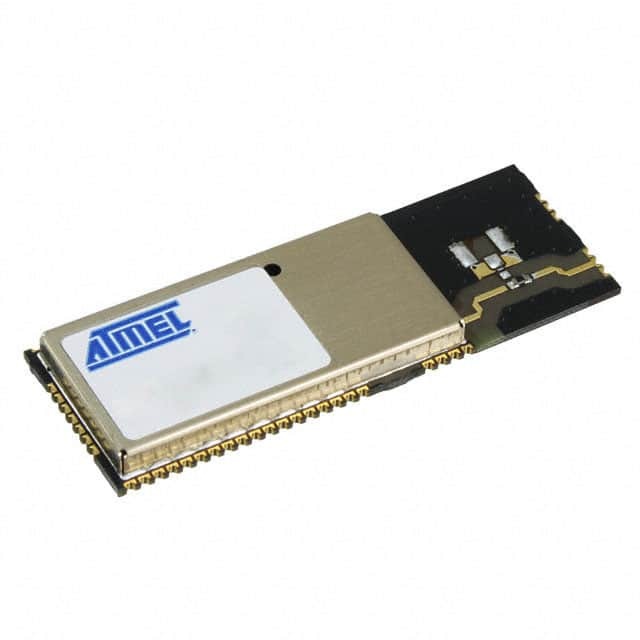

ATZB-A24-U0B

SKU: 53543

Manufacturer: Microchip Technology

802.15.4/ZigBee SOC 2483.5MHz 250Kbps 57-Pin SMD T/R

970 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Supplier Unconfirmed
Part Status	Obsolete
Automotive	No
PPAP	No
Module/IC Classification	Module
Solutions	AMR/ISM
RAM Size (KB)	8
Flash Size (KB)	128
Number of Channels	16
External Antenna Connector Type	U.FL
Maximum Data Rate (Kbps)	250
Minimum Operating Frequency (MHz)	2400
Maximum Operating Frequency (MHz)	2483.5
ISM Band	2.4GHz
Typical Sensitivity	-107dBm
Protocol Stack	802.15.4/ZigBee
Interface	GPIO/I2C/UART/Wire
Maximum Output Power	20dBm(Typ)
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	3.6
Maximum Current Consumption (RX) (mA)	39.5
Maximum Current Consumption (TX) (mA)	183.5
Outdoor Range	4000m
Processing Unit Type	Microcontroller
Antenna Terminal Form	External
Application	Lighting control
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Extended
Packing Method	Tape and Reel
Standard Package Method	SMD
Original Package	SMD
Pin Count	57
Terminal Form	Surface Mount
Package Height	2.8
Package Length	38
Package Width	13.5
