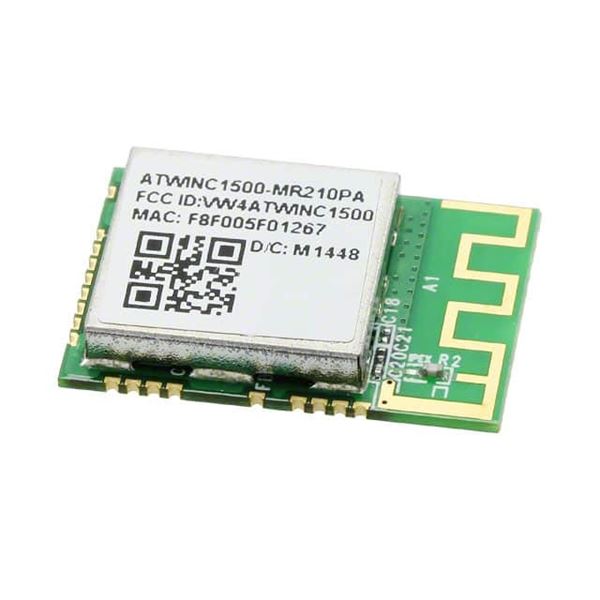

ATWINC1500-MR210PA

SKU: 102787

Manufacturer: Microchip Technology

Module 802.11b/g/n 2.484GHz 72000Kbps 28-Pin SMD Module

1840 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992c.
Part Status	Obsolete
HTS	8517.62.00.90
Automotive	No
PPAP	No
Technology	IEEE 802.11b/g/n
Style	Module
Modulation Technique	CCK
Maximum Data Rate (Kbps)	72000
Band Mode	Single Mode
Minimum Operating Frequency (MHz)	2412
Maximum Operating Frequency (MHz)	2484
Typical Sensitivity	-97.3dBm@1Mbps
Interface	GPIO/I2C/SPI/UART
Maximum Output Power	19dBm
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	4.2
Processing Unit Type	Microprocessor
Antenna Terminal Form	On Board
Wi-Fi Compliant	Yes
Wi-Fi Direct	Yes
Security	802.11i/64bit WEP/128bit WEP/128bit WPA2/AES/TKIP/WAPI/WEP
Operation Mode	Client
Operating Temperature-Min	-20
Operating Temperature-Max	85
Standard Package Method	SMD Module
Original Package	SMD Module
Pin Count	28
Terminal Form	Surface Mount
Package Height	3.5
Package Length	21.72
Package Width	14.73
