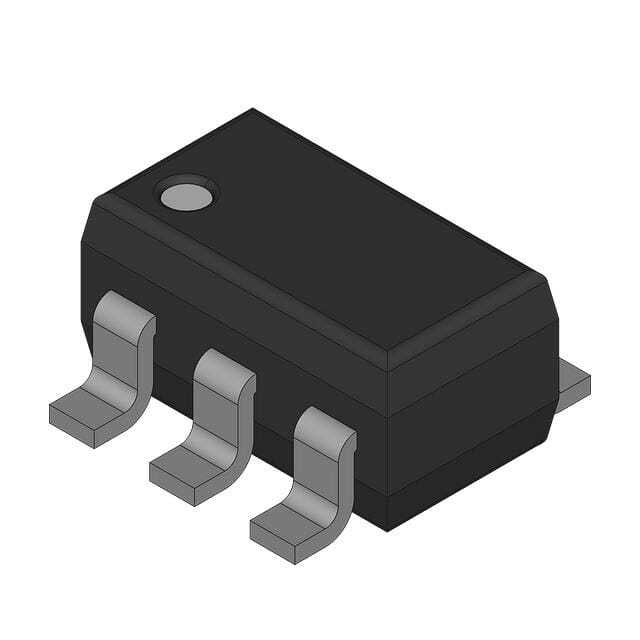

ATTINY5-TS8R

SKU: 122077

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 512B Flash 2.5V/3.3V/5V 6-Pin SOT-23 T/R

1100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATtiny
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	10
Maximum Clock Rate (MHz)	10
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	512B
RAM Size	32B
Programmability	Yes
Number of I/Os	4
No. of Timers	1
PWM	2
Number of ADCs	Single
ADC Channels	4
ADC Resolution (bit)	8
USART	0
UART	0
USB	0
SPI	0
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Pin Count	6
Standard Package Method	SOT-23
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.3(Max)
Package Length	2.9
Package Width	1.6
PCB changed	6
