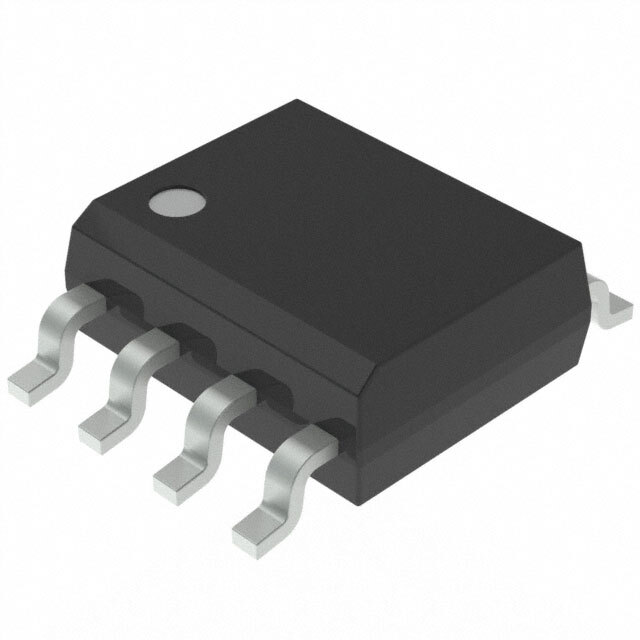

ATTINY212-SSFR

SKU: 136244

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 2KB Flash 3.3V/5V 8-Pin SOIC N T/R

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATtiny
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	2KB
RAM Size	128B
Programmability	Yes
Interface Type	I2C/SPI/USART
Number of I/Os	6
No. of Timers	3
Number of ADCs	Single
ADC Channels	6
ADC Resolution (bit)	10
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	8
USART	1
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOIC N
Pin Count	8
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	5.05(Max)
Package Width	3.99(Max)
