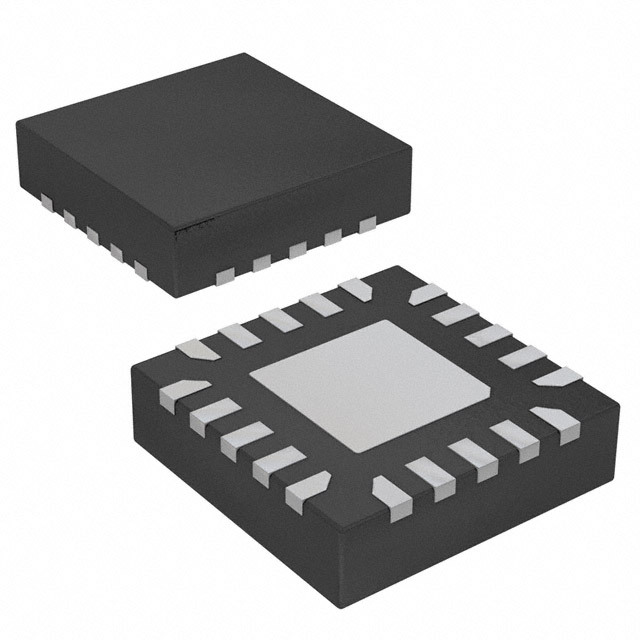

ATTINY1616-MNR

SKU: 136246

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 16KB Flash 2.5V/3.3V/5V 20-Pin VQFN EP T/R

17030 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATtiny
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	16KB
RAM Size	2KB
Programmability	Yes
Interface Type	I2C/SPI/USART
Number of I/Os	18
No. of Timers	4
Number of ADCs	Dual
ADC Channels	20/20
ADC Resolution (bit)	10/10
Number of DACs	Triple
DAC Channels	3
DAC Resolution (bit)	8/8/8
USART	1
UART	0
USB	0
SPI	1
I2C	1
I2S	0
CAN	0
Ethernet	0
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	105
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	VQFN EP
Pin Count	20
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.82
Package Length	3
Package Width	3
PCB changed	20
