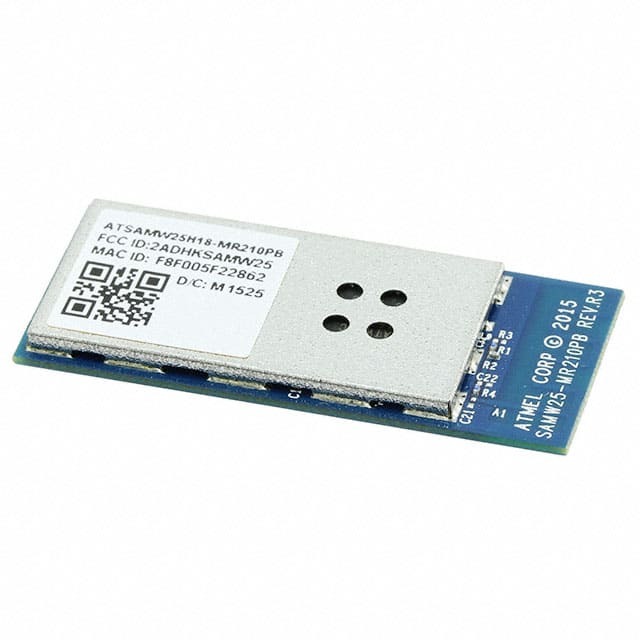

    ATSAMW25H18-MR210PB

    SKU: 95692
    Manufacturer: Microchip Technology
    Module 802.11b/g/n 2.484GHz 72000Kbps 51-Pin Tray
    Download sample
    Request Free Samples
    1450 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) 5A992.c
    Part Status Active
    HTS 8517.62.00.90
    Automotive No
    PPAP No
    Technology IEEE 802.11b/g/n
    Style Module
    Modulation Technique CCK
    Solutions ISM
    Maximum Data Rate (Kbps) 72000
    Band Mode Single Mode
    Minimum Operating Frequency (MHz) 2412
    Maximum Operating Frequency (MHz) 2484
    ISM Band 2.4GHz
    Typical Sensitivity -89dBm@9Mbps
    Interface SPI/UART
    Maximum Output Power 19.5dBm(Typ)
    Operating Supply Voltage-Min (V) 2.7
    Typical Operating Supply Voltage (V) 3.3
    Operating Supply Voltage-Max (V) 3.6
    Processing Unit Type Microcontroller
    Wi-Fi Compliant Yes
    Wi-Fi Direct No
    Security 802.11i/64bit WEP/128bit WEP/128bit WPA2/AES/TKIP/WAPI/WEP
    IP Version IPv4
    Operation Mode Infrastructure
    Operating Temperature-Min -40
    Operating Temperature-Max 85
    Packing Method Tray
    Pin Count 51
    Terminal Form Surface Mount
    Package Height 84.14
    Package Length 1333.2
    Package Width 585.92
