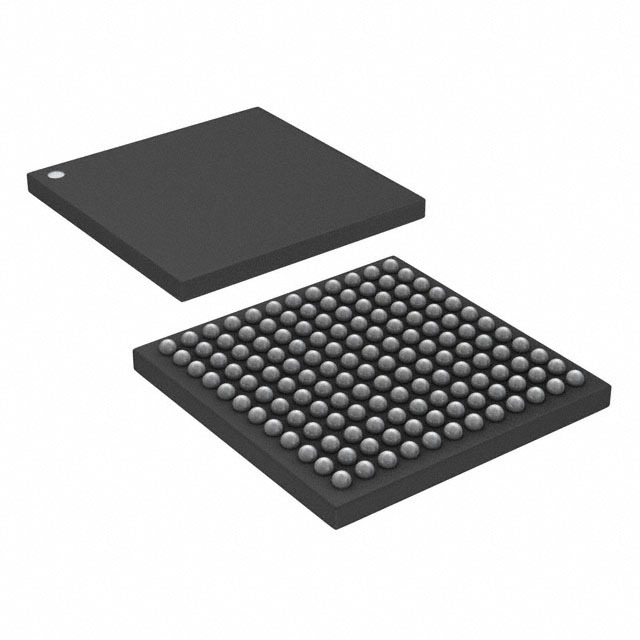

ATSAMV71Q21B-CBT

SKU: 109852

Manufacturer: Microchip Technology

MCU 32-bit ARM Cortex M7 RISC 2MB Flash 1.8V/2.5V/3.3V Automotive 144-Pin TFBGA T/R

1850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.31.00.01
Automotive	Yes
PPAP	Unknown
Family Name	SAM V71
Instruction Set Architecture	RISC
Device Core	ARM Cortex M7
Core Architecture	ARM
Maximum CPU Frequency (MHz)	300
Maximum Clock Rate (MHz)	300
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	2MB
RAM Size	384KB
Programmability	Yes
Interface Type	SPI/UART/USART/USB
Number of I/Os	114
No. of Timers	4
Timers Resolution (bit)	16/16/16/16
PWM	2
Number of ADCs	Single
ADC Channels	24
ADC Resolution (bit)	12
Number of DACs	Single
DAC Channels	2
DAC Resolution (bit)	12
USART	3
UART	5
USB	1
SPI	6
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	2
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	Yes
Operating Supply Voltage-Min (V)	1.62
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	105
Original Package	TFBGA
Pin Count	144
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.2
Package Length	10
Package Width	10
PCB changed	144
