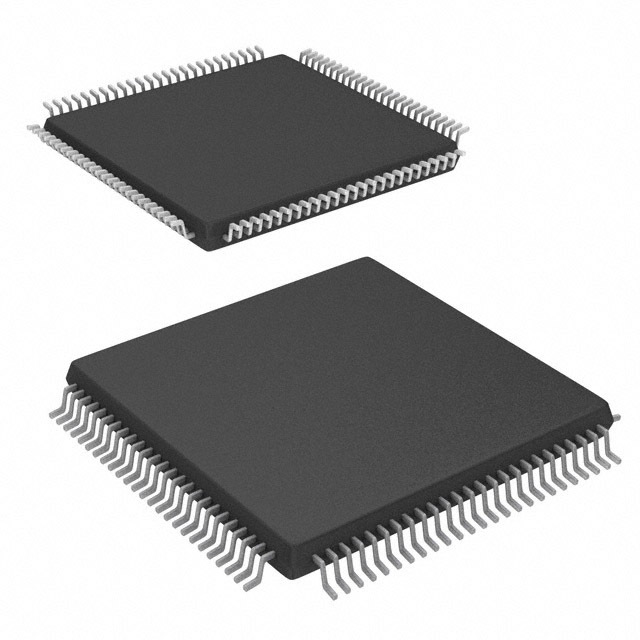

ATSAML22N18A-AUT

SKU: 32105

Manufacturer: Microchip Technology

MCU 32-bit ARM Cortex M0+ RISC 256KB Flash 3.3V 100-Pin TQFP T/R

880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992c.
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	SAM L
Instruction Set Architecture	RISC
Device Core	ARM Cortex M0+
Core Architecture	ARM
Maximum CPU Frequency (MHz)	32
Maximum Clock Rate (MHz)	32
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	256KB
RAM Size	32KB
Programmability	Yes
Interface Type	I2C/SPI/USART/USB
Number of I/Os	82
No. of Timers	4
PWM	2
Number of ADCs	Single
ADC Channels	20
ADC Resolution (bit)	12
LCD Segments	48
USART	1
UART	0
USB	1
SPI	6
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	2
Parallel Master Port	No
Real Time Clock	No
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.62
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.63
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	100
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14
Package Width	14
PCB changed	100
