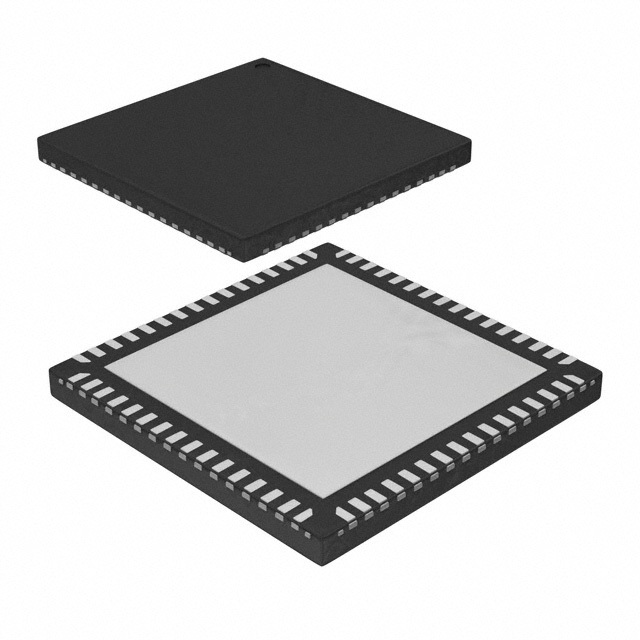

ATSAME51J19A-MU

SKU: 67523

Manufacturer: Microchip Technology

MCU 32-bit ARM Cortex M4F RISC 512KB Flash 3.3V 64-Pin VQFN EP Tray

1530 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	5A992.c
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	SAM E
Instruction Set Architecture	RISC
Device Core	ARM Cortex M4F
Core Architecture	ARM
Maximum CPU Frequency (MHz)	120
Maximum Clock Rate (MHz)	120
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	192KB
Programmability	Yes
Interface Type	CAN/I2S/SPI/USB
Number of I/Os	51
No. of Timers	13
PWM	1
Number of ADCs	Dual
ADC Channels	8/16
ADC Resolution (bit)	12/12
Number of DACs	Dual
DAC Channels	2/2
DAC Resolution (bit)	12/12
USART	0
UART	0
USB	1
SPI	6
I2C	0
I2S	1
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	4
Parallel Master Port	No
Real Time Clock	No
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	1.71
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.63
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tray
Original Package	VQFN EP
Pin Count	64
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	1
Package Length	9
Package Width	9
PCB changed	64
