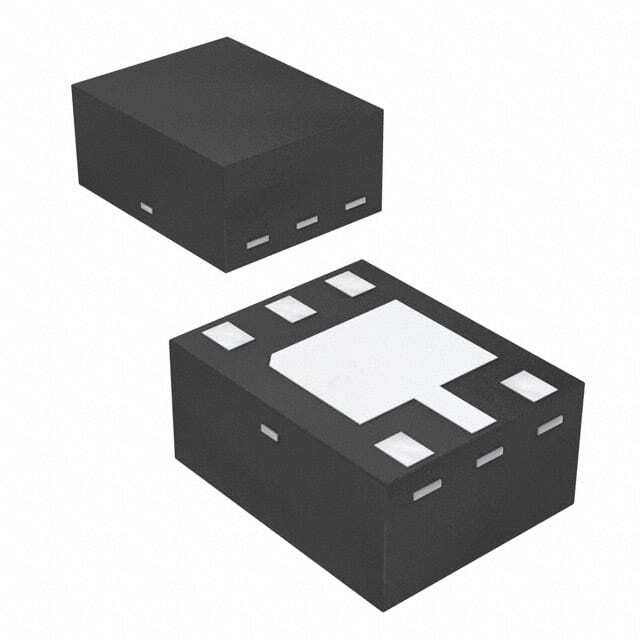

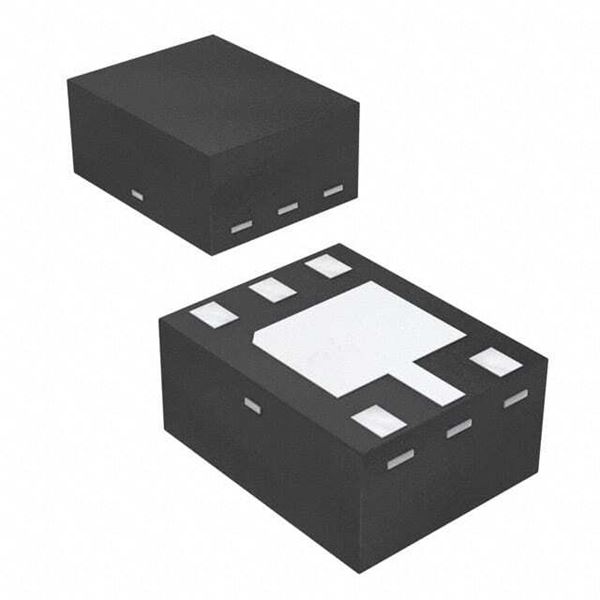

ATR0610-PQQ

SKU: 131196

Manufacturer: Microchip Technology

GPS Amp Single Low Noise 1.57542GHz 3.3V 6-Pin PLLP EP

1660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Manufacturer Type	Low Noise Amplifier
Product Category	Chip
Number of Channels per Chip	1
Process Technology	SiGe
Maximum Operating Frequency (MHz)	1575.42(Typ)
Maximum Gain (dB)	16(Typ)@1575MHz
Typical Noise Figure (dB)	1.5@1575MHz
Maximum Reverse Isolation (dB)	30(Typ)@1575MHz
Maximum Input Return Loss (dB)	10(Min)@1575MHz
Maximum Output Return Loss (dB)	10(Min)@1575MHz
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	3.3
Maximum Supply Current (mA)	3.3@2.7V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Original Package	PLLP EP
Pin Count	6
Standard Package Method	PLLP
Terminal Form	Surface Mount
Package Height	0.9
Package Length	1.6
Package Width	2
PCB changed	6
