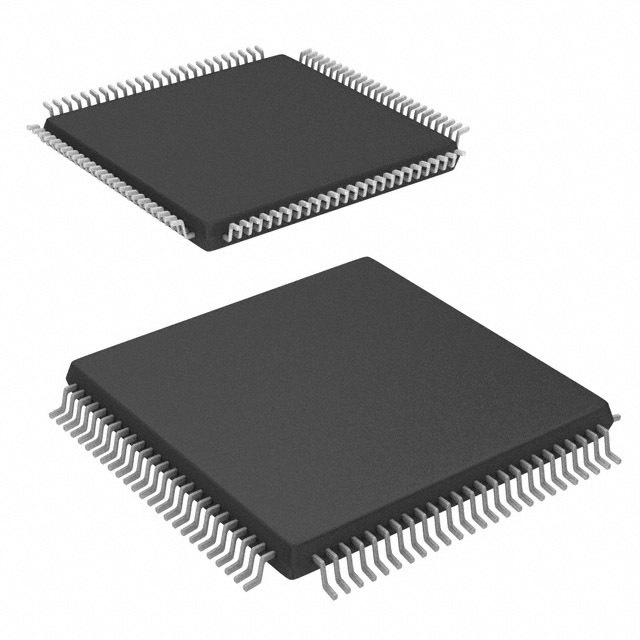

ATMEGA3290PA-AU

SKU: 131183

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 32KB Flash 2.5V/3.3V/5V 100-Pin TQFP Tray

1000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATmega
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	20
Maximum Clock Rate (MHz)	20
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	32KB
RAM Size	2KB
Programmability	Yes
Interface Type	SPI/USART
Number of I/Os	69
No. of Timers	3
PWM	4
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
LCD Segments	160
USART	1
UART	0
USB	0
SPI	3
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Special Features	LCD Controller
Operating Supply Voltage-Min (V)	1.8
Typical Operating Supply Voltage (V)	2.5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Pin Count	100
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	14.1(Max)
PCB changed	100
