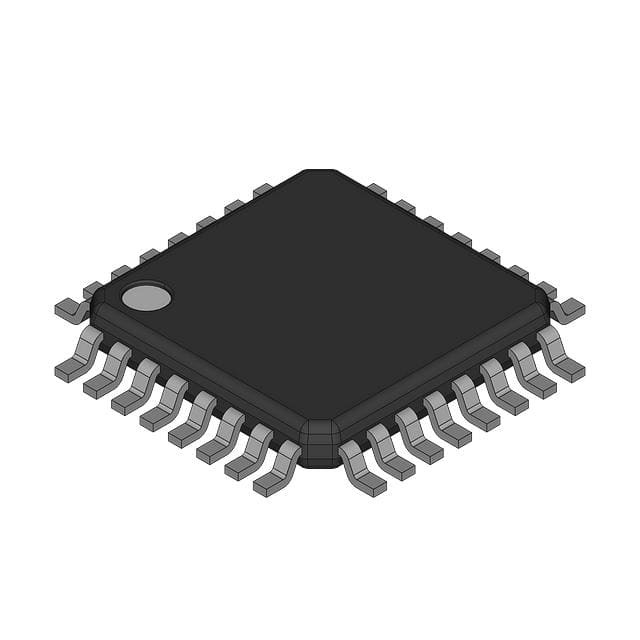

ATMEGA16M1-15AZ

SKU: 10735

Manufacturer: Microchip Technology

MCU 8-bit AVR RISC 16KB Flash 3.3V/5V Automotive 32-Pin LQFP

1090 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
SVHC	Yes
Automotive	Yes
PPAP	Unknown
Family Name	ATmega
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	16KB
RAM Size	1KB
Programmability	Yes
Interface Type	CAN/SPI/UART
Number of I/Os	27
No. of Timers	2
PWM	1
Number of ADCs	Single
ADC Channels	11
ADC Resolution (bit)	10
Number of DACs	Single
DAC Channels	1
DAC Resolution (bit)	10
USART	0
UART	1
USB	0
SPI	1
I2C	0
I2S	0
CAN	1
Ethernet	0
Watchdog	1
Analog Comparators	4
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	2.7
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Pin Count	32
Standard Package Method	QFP
Original Package	LQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	7
Package Width	7
PCB changed	32
