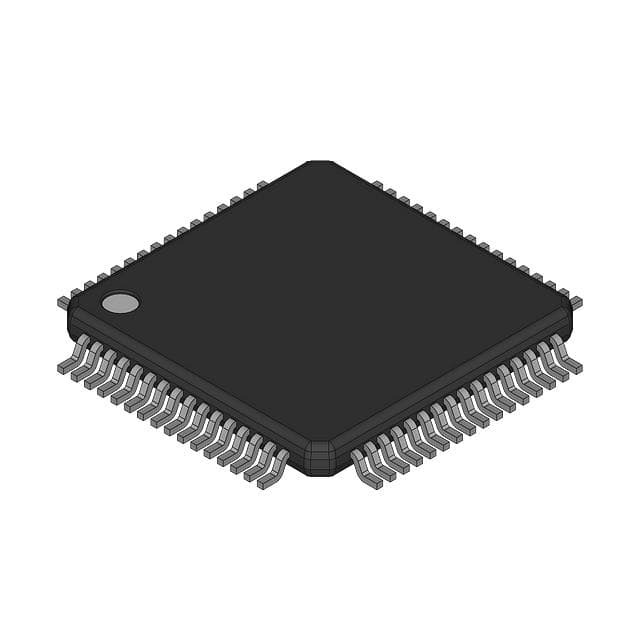

ATMEGA128-16AU

SKU: 102751

Manufacturer: Microchip Technology

8-bit RISC Atmel microprocessor with a maximum instruction execution rate of 16 MIPS, on-chip multiplier, 128 KB of flash memory, 4 KB of SRAM, and various peripherals including timers, UART, SPI, I2C, and analog comparators.

Download sample

Request Free Samples

3060 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATmega
Instruction Set Architecture	RISC
Device Core	AVR
Core Architecture	AVR
Maximum CPU Frequency (MHz)	16
Maximum Clock Rate (MHz)	16
Data Bus Width (bit)	8
Program Memory Type	FLASH
Program Memory Size	128KB
RAM Size	4KB
Maximum Expanded Memory Size	64KB
Programmability	Yes
Process Technology	CMOS
Interface Type	JTAG/TWI/SPI/USART
Number of I/Os	53
No. of Timers	4
PWM	8
Number of ADCs	Single
ADC Channels	8
ADC Resolution (bit)	10
USART	2
UART	0
USB	0
SPI	1
I2C	0
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	1
Parallel Master Port	No
Real Time Clock	No
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tray
Pin Count	64
Standard Package Method	QFP
Original Package	TQFP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	14.1(Max)
Package Width	14.1(Max)
PCB changed	64
