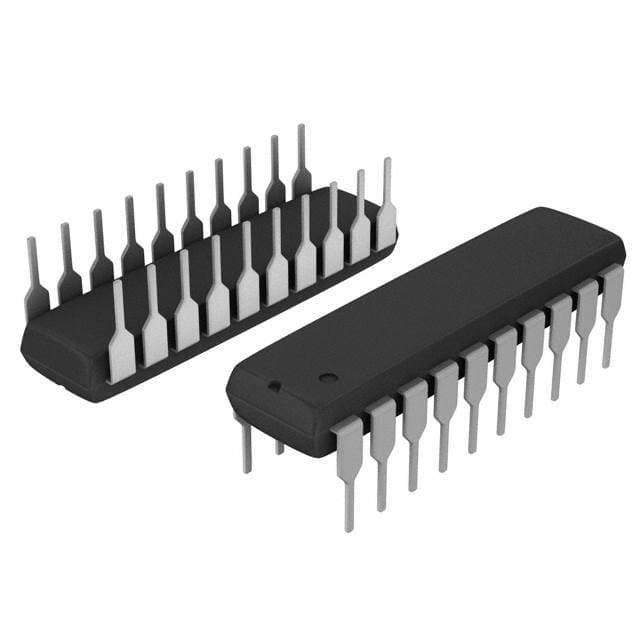

ATF16V8CZ-15PC

SKU: 22997

Manufacturer: Microchip Technology

SPLD ATF16V8C Family 250 Gates 8 Macro Cells 62MHz 5V 20-Pin PDIP

1880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATF16V8C
Device System Gates	250
Maximum Number of User I/Os	8
Number of Macro Cells	8
Product Terms	8
Programmability	Yes
Reprogrammability Support	Yes
In-System Programmability	No
Opr. Frequency (MHz)	62
Maximum Propagation Delay Time (ns)	15
Speed Grade	15
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Maximum Operating Current (mA)	95
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Tradename	ATF16V8
Original Package	PDIP
Pin Count	20
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	5.33(Max) - 0.38(Min)
Package Length	26.92(Max)
Package Width	7.11(Max)
PCB changed	20
