ATF16V8C-7JC

SKU: 17988

Manufacturer: Microchip Technology

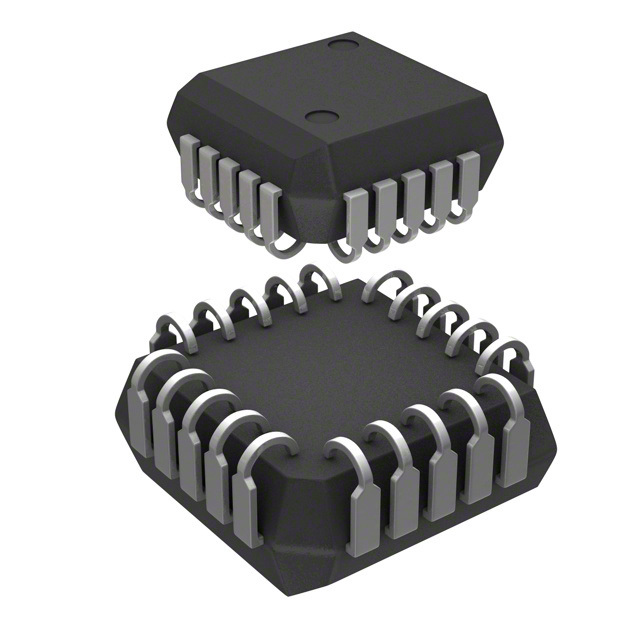

SPLD ATF16V8C Family 250 Gates 8 Macro Cells 125MHz 5V 20-Pin PLCC

3620 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATF16V8C
Device System Gates	250
Maximum Number of User I/Os	8
Number of Macro Cells	8
Product Terms	8
Programmability	Yes
Reprogrammability Support	Yes
In-System Programmability	No
Opr. Frequency (MHz)	125
Maximum Propagation Delay Time (ns)	7.5
Speed Grade	7
Operating Supply Voltage-Min (V)	4.75
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.25
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Tradename	ATF16V8
Original Package	PLCC
Pin Count	20
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
