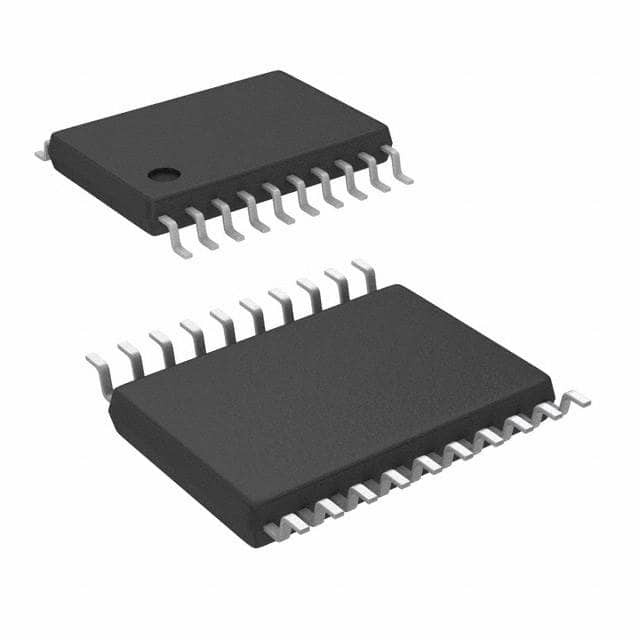

ATF16V8BQL-15XI

SKU: 107811

Manufacturer: Microchip Technology

SPLD ATF16V8B Family 250 Gates 8 Macro Cells 62MHz 5V 20-Pin TSSOP

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
Part Status	Obsolete
Automotive	No
PPAP	No
Family Name	ATF16V8B
Device System Gates	250
Maximum Number of User I/Os	8
Number of Macro Cells	8
Product Terms	8
Programmability	Yes
Reprogrammability Support	Yes
In-System Programmability	No
Opr. Frequency (MHz)	62
Maximum Propagation Delay Time (ns)	15
Speed Grade	15
Operating Supply Voltage-Min (V)	4.5
Typical Operating Supply Voltage (V)	5
Operating Supply Voltage-Max (V)	5.5
Maximum Operating Current (mA)	20(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Tradename	ATF16V8
Original Package	TSSOP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
