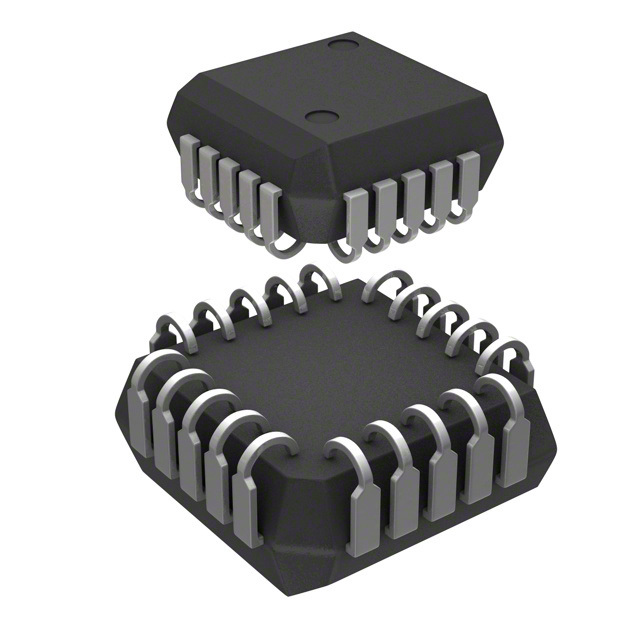

ATF16LV8C-15JC

SKU: 88566

Manufacturer: Microchip Technology

SPLD ATF16LV8C Family 250 Gates 8 Macro Cells 62.5MHz 3.3V/5V 20-Pin PLCC

2130 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	ATF16LV8C
Device System Gates	250
Maximum Number of User I/Os	8
Number of Macro Cells	8
Product Terms	8
Programmability	Yes
Reprogrammability Support	Yes
Programmable Type	EEPLD
In-System Programmability	No
Opr. Frequency (MHz)	62.5
Maximum Propagation Delay Time (ns)	15
Speed Grade	15
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	5.5
Maximum Operating Current (mA)	55
Operating Temperature-Min	0
Operating Temperature-Max	70
Supplier Temperature Grade	Commercial
Tradename	ATF16LV8
Original Package	PLCC
Pin Count	20
Standard Package Method	LCC
Terminal Form	Surface Mount
Package Height	3.68(Min)
Package Length	9.04(Max)
Package Width	9.04(Max)
PCB changed	20
